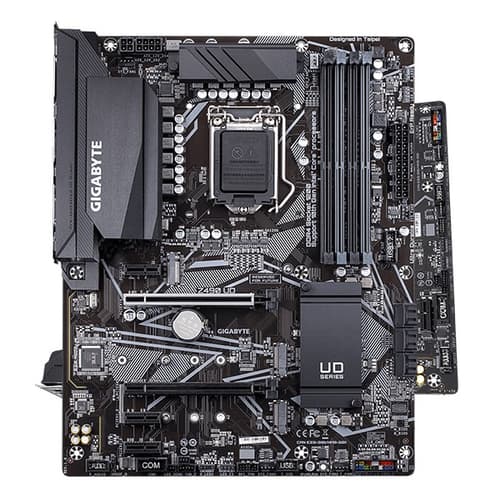

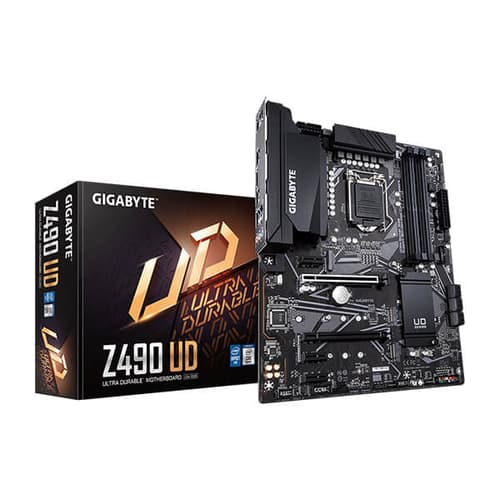

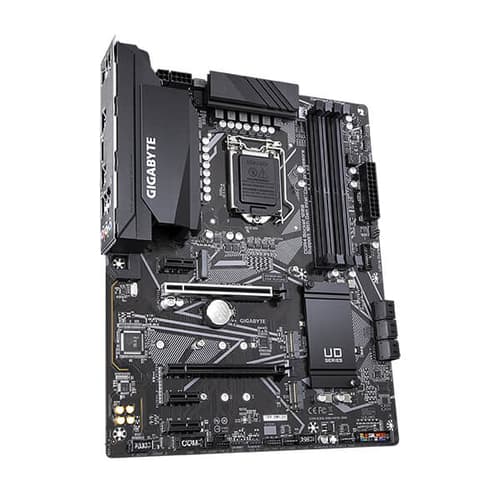

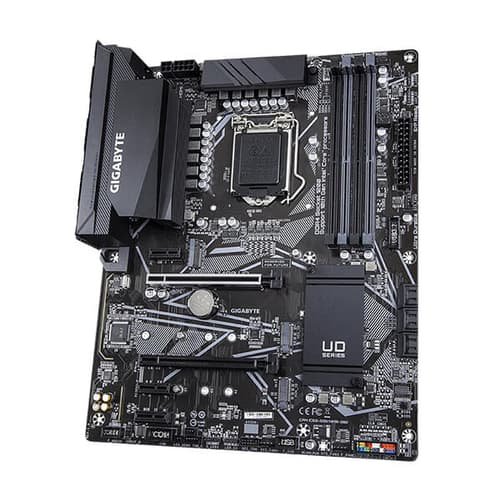

Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD
Gigabyte Z490 UD

Gigabyte Z490 UD

/ Write a review

HDFC bank Offer



Enjoy Instant UPI Discount on Every Transactions.

  • Brand: GIGABYTE
  • Product Code: Z490-UD
  • Availability: Out Of Stock

Gigabyte Z490 UD

₹15,625

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Intel® Z490 Ultra Durable Motherboard with Direct 11+1 Phases Digital VRM, Extended MOS Heatsink, Dual NVMe PCIe 3.0 x4 M.2, GbE Gaming LAN, Integrated I/O Shield, Q-Flash PLUS, RGB FUSION 2.0

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 11+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Enlarged VRM Heatsink with Increased Surface contact Air-Flow Grooving
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 & One Supports SATA protocol
  • Intel® Native USB 3.2 Gen2 Type-A with Speed Up To 10Gbps
  • RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash PLUS Updates BIOS without Installing the CPU, Memory and Graphics Card
  • Rear IO Armor with Pre-Installed I/O Shield
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

Specifications

CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset Intel® Z490 Express Chipset
Memory
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
  1. Integrated Graphics Processor-Intel® HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  5. Intel® Optane™ Memory Ready
USB Chipset:
  1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x 8-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 4 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 1 x Q-Flash Plus button
  9. 6 x SATA 6Gb/s connectors
  10. 2 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 1 x USB 3.2 Gen 1 header
  15. 1 x USB 2.0/1.1 header
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 2 x Thunderbolt™ add-in card connectors
  18. 1 x serial port header
  19. 1 x Clear CMOS jumper

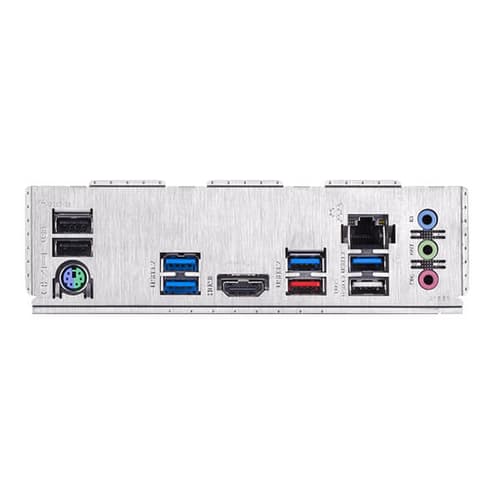

Back Panel Connectors >
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x HDMI port
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 5 x USB 3.2 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note
***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset Z490
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
