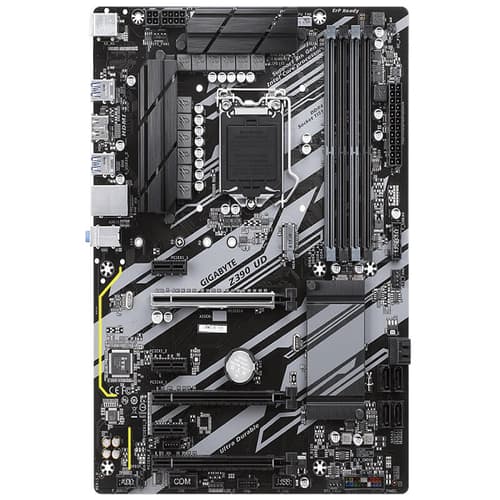

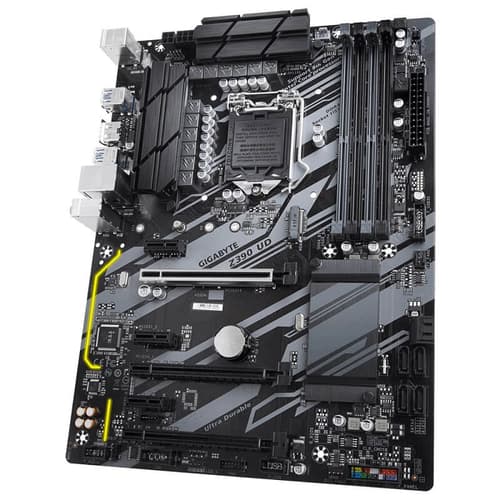

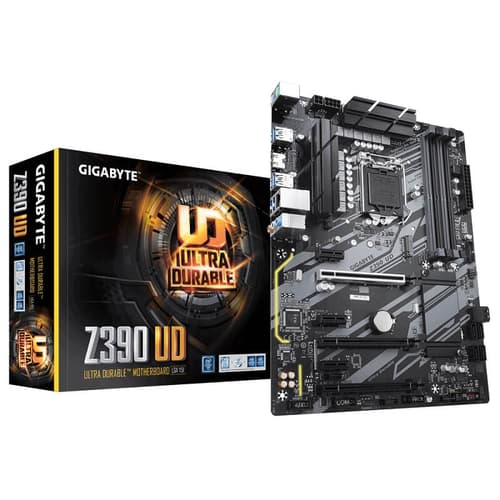

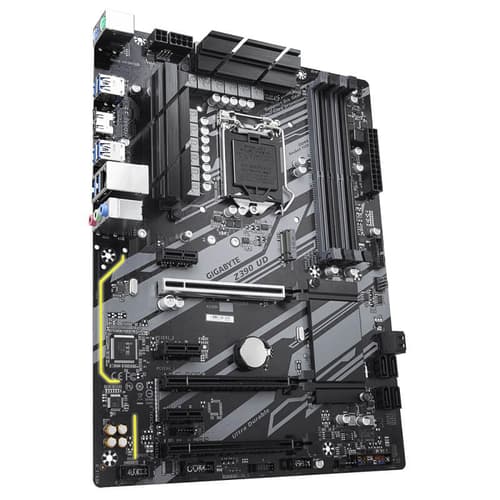

Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD
Gigabyte Z390 UD

Gigabyte Z390 UD

/ Write a review

HDFC bank Offer



  • Brand: GIGABYTE
  • Product Code: Z390-UD
  • Availability: Out Of Stock

Gigabyte Z390 UD

₹13,600

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

SPECIFICATIONS



CPU
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel®Core™ i3 processors/Intel® Pentium® processors/
  2. Intel® Celeron® processors in the LGA1151 package
  3. L3 cache varies with CPU
Chipset Intel® Z390 Express Chipset
Memory
  • 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU.
Audio
  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • Support for S/PDIF Out
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
  • 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
  1. 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
  2. 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x M.2 Socket 3 connector
  5. 6 x SATA 6Gb/s connectors
  6. 1 x CPU fan header
  7. 3 x system fan headers
  8. 1 x RGB LED strip header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.1 Gen 1 header
  12. 1 x USB 2.0/1.1 header
  13. 1 x S/PDIF Out header
  14. 1 x Thunderbolt™ add-in card connector
  15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  16. 1 x serial port header
  17. 1 x Clear CMOS jumper

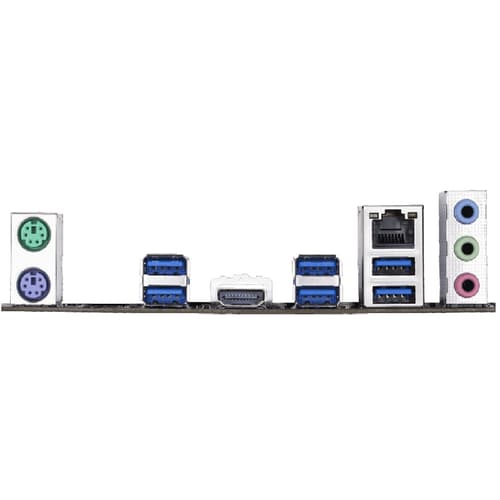

Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x HDMI port
  4. 6 x USB 3.1 Gen 1 ports
  5. 1 x RJ-45 port
  6. 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundle Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 23.0cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.

FEATURES



  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • New 10+2 Phases Digital PWM Design
  • NVMe PCIe Gen3 x4 22110 M.2 Connector
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Support RGB Light Strip in Full Colors
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® Optane™ Memory Ready
Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

NVMe PCIe Gen3 x4 22110 M.2 Connector (Up to 32 Gb/s)
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

10*+2 Phases Digital VRM Design with Low RDS(on) MOSFET
Intersil Digital PWM + Lower RDS(on) MOSFETs GIGABYTE UD series motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest 8-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Support for DDR4 to 4266MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4266MHz and beyond

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution

Support RGB Lighting Effect in Full Color
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.



Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX

Questions and Answers

Q. Will the motherboard support i5-9600k out of the box or do I have to ask for a bios update while purchasing the board from "mdcomputers.in". 23/09/2019

A.

Gigabyte Z390 UD supports i5-9600k out of the box.

Karthik (Verified Buyer )

Q. Does it support intel i5 9400f 2.9GHz ? 15/05/2019

A. Yes Sir.

Sujit (Verified Buyer )

Q. Which would be a better pick this one or MSI z390 A pro ? 14/05/2019

A. MSI will be good.

Swastik Panda (Verified Buyer )
