Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming
Gigabyte Z390 M Gaming

Gigabyte Z390 M Gaming

/ Write a review

HDFC bank Offer



Enjoy Instant UPI Discount on Every Transactions.

  • Brand: GIGABYTE
  • Product Code: Z390-M-GAMING
  • Availability: Out Of Stock

Gigabyte Z390 M Gaming

₹14,750

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

SPECIFICATIONS



CPU
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel®Core™ i3 processors/Intel® Pentium® processors
  2. Intel® Celeron® processors in the LGA1151 package
  3. L3 cache varies with CPU
Chipset
  1. Intel® Z390 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 4266(O.C.) / 4133(O.C.) /4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) /3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) /2666 / 2400 / 2133 MHz memory modules
  1. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  2. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  3. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU.
Audio
  1. Realtek® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 1 x M.2 Socket 1 connector for an Intel® CNVi (CNVI)
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
  3. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 3 x system fan headers
  6. 1 x RGB LED strip header
  7. 6 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 1 x USB 3.1 Gen 1 header
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module (SPI_TPM) header
  15. 1 x Thunderbolt™ add-in card connector
  16. 1 x serial port header
  17. 1 x Clear CMOS jumper

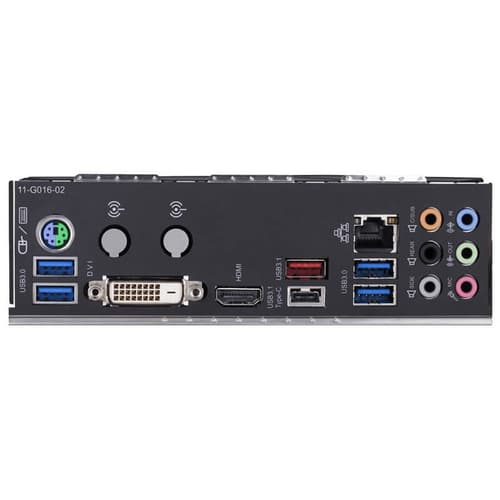

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x HDMI ports
  4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  5. 1 x USB 3.1 Gen 2 Type-A port (red)
  6. 4 x USB 3.1 Gen 1 ports
  7. 1 x RJ-45 port
  8. 6 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    *Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty
 3 Years
Note
 ***Features, Price and Specifications are subject to change without notice.



FEATURES



  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New 10+2 Phases Digital PWM Design
  • High Quality Audio Capacitors
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Intel® Native USB 3.1 Gen2 Type-A + Type-C
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® Gigabit LAN with cFosSpeed
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Support RGB Lighting Effect in Full Colors
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® Optane™ Memory Ready
10*+2 Phases Digital VRM Design with Low RDS(on) MOSFET Optimized for 8-Core Intel® Core™ CPU
GIGABYTE GAMING series motherboards use a 10*+2 phase PWM+ Lower RDS(on) MOSFETs design to support the latest 8-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Immersive VR Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Support RGB Lighting Effect in Full Color
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Dual-Mode M.2 Slot Design Support PCIe NVMe + SATA SSDs
GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on M.2 slots. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.
Smart Fan 5

With Smart Fan 5

users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.



Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor M-ATX

Questions and Answers

Q. When will this is expected back in stock? 08/06/2019

A. No updates.

Shivam Sharma (Verified Buyer )

Q. Can we overclock the i7 9700k processor??? Will it support gtx 1660ti and 16gb ram? 29/04/2019

A. We do not recommend OC.

Kanishk Naithani (Verified Buyer )

Q. Will an i7 8700 work with this? what kind of RAM will be best? will Corsair LPX 3200 work? 19/04/2019

A. 700 and Corsair ram will work.
