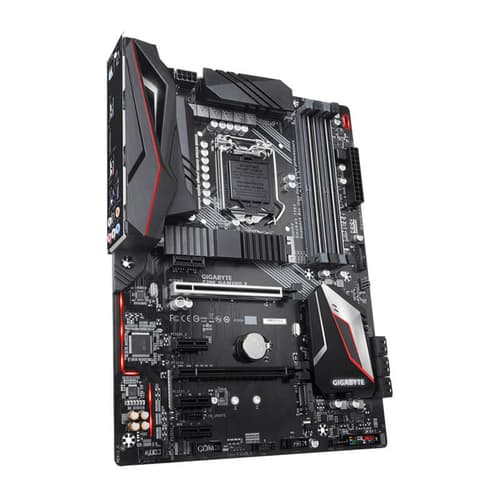

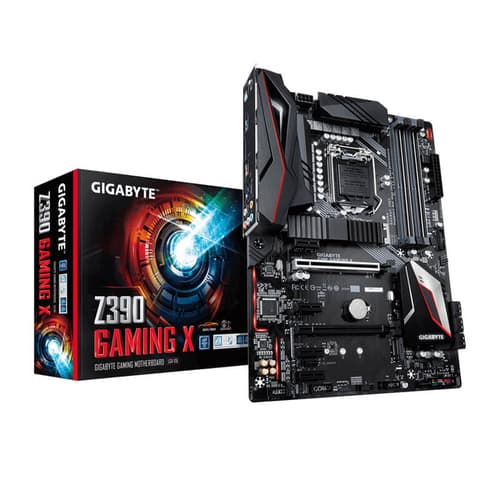

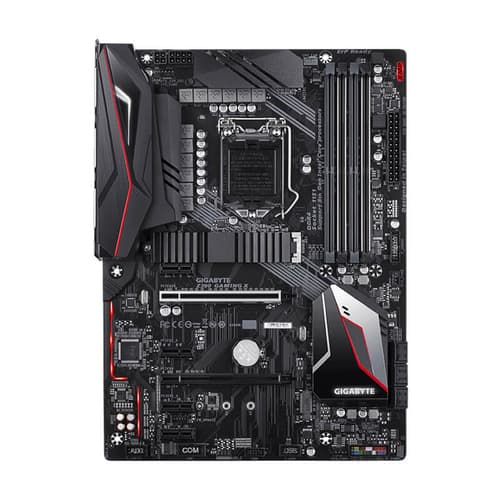

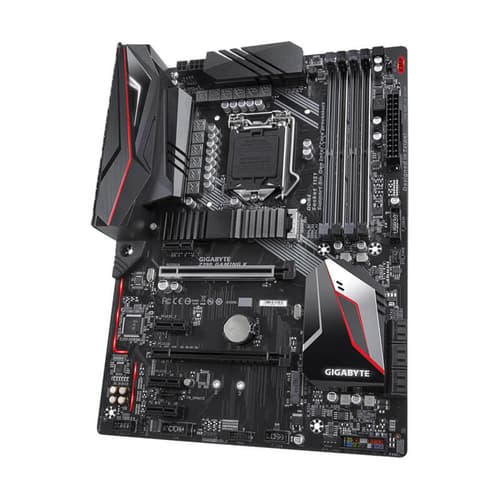

Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X
Gigabyte Z390 Gaming X

Gigabyte Z390 Gaming X

/ Write a review

HDFC bank Offer



  • Brand: GIGABYTE
  • Product Code: Z390-GAMING-X
  • Availability: Out Of Stock

Gigabyte Z390 Gaming X

₹16,575

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features



Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A, M.2 Thermal Guard, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, DualBIOS, CEC 2019

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New 10+2 Phases Digital PWM Design
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface
  • 2-Way CrossFire™ Multi-Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Intel® Native USB 3.1 Gen2 Type-A
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Support RGB Lighting Effect in Full Colors
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® Optane™ Memory Ready

Specifications





CPU
  • Support for 9th and 8th Generation IntelCore i9 processors/IntelCore i7 processors/IntelCore i5 processors/IntelCore i3 processors/ IntelPentiumprocessors/ IntelCeleron Processors in the LGA1151 package
  • L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel® Z390 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
    ** Please note that the support for system total memory size depends on the CPU installed.
  2. Dual channel memory architecture
  3. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU.
Audio
  1. Realtek ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB Chipset:
  1. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
  2. 7 x USB 3.1 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x 8-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 3 x system fan headers
  6. 1 x RGB LED strip header
  7. 6 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 1 x USB 3.1 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  15. 1 x Thunderbolt™ add-in card connector
  16. 1 x serial port header
  17. 1 x Clear CMOS jumper

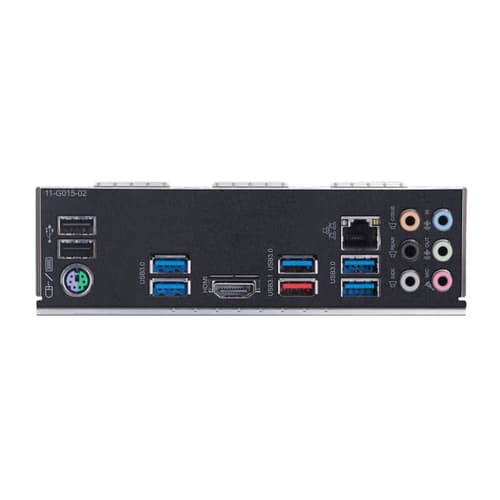

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x HDMI port
  3. 1 x USB 3.1 Gen 2 Type-A port (red)
  4. 5 x USB 3.1 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 6 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 22.5cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX

Questions and Answers

Q. Does this motherboard supports Windows 7/ SP1/ 8 ? Does it support ddr4 2400mhz RAM? 18/10/2019

A.

There are no official driver updates for Windows 7/ SP1/ 8 for the motherboard. We recommend using Windows 10 64-bit. It supports ddr4 2400mhz RAM.

arindam chakraborty (Verified Buyer )

Q. Does it support Gpu CPU and RAM Overclocking?
 22/09/2019

A. Yes. But overclocking depends on various other components too.

Mohammed Farhan Sheikh (Verified Buyer )
