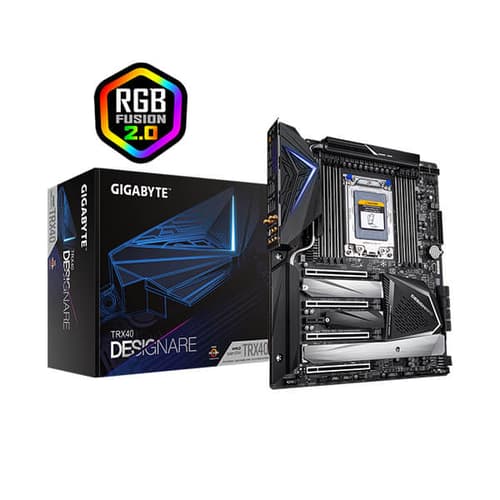

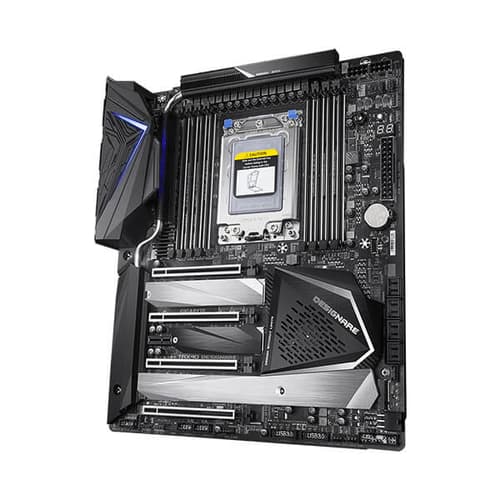

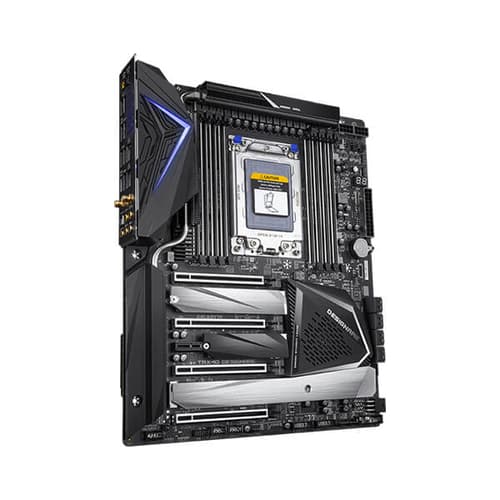

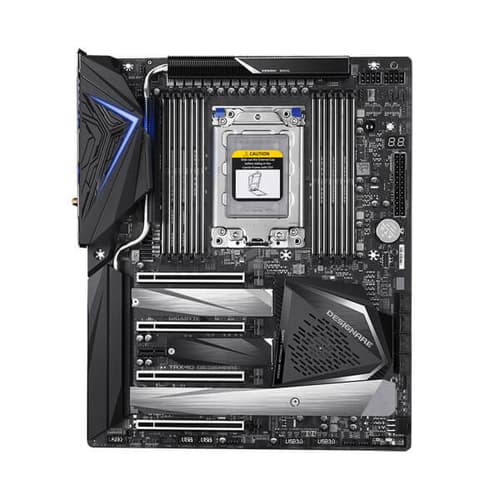

Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)
Gigabyte TRX40 DESIGNARE (Wi-Fi)

Gigabyte TRX40 DESIGNARE (Wi-Fi)

/ Write a review

  • Brand: GIGABYTE
  • Product Code: TRX40-DESIGNARE
  • Availability: Out Of Stock

Gigabyte TRX40 DESIGNARE (Wi-Fi)

₹65,458

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

AMD TRX40 DESIGNARE Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, Dual Intel LAN, 4 PCIe 4.0 M.2 with Thermal Guards, Bundled GC-Titan Ridge Add-In Card and AORUS Gen4 AIC Adaptor, Intel® WiFi 6 802.11ax,120dB SNR AMP-UP Audio

  • Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
  • Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
  • 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
  • Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe
  • Dual Intel® Gigabit LAN with cFosSpeed to shorten response time
  • 4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with Antenna
  • 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
  • Bundled 40Gb/s GC-Titan Ridge Add-In Card
  • Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
  • USB TurboCharger for Mobile Device Fast Charge Support
  • RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Front & Rear USB 3.2 Gen 2 Type-C™ Header
  • Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Specifications

CPU
  1. AMD Socket sTRX4:
    Support 3rd Generation AMD Ryzen™ Threadripper™ processors
(Please refer "CPU Support List" for more information.)
Chipset AMD TRX40
Memory
  1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
  2. Quad Channel memory architecture
  3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
  1. Realtek® ALC4050H codec+ Realtek® ALC1220-VB codec
  2. Support for DTS:X® Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN 2 x Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
Intel® Wi-Fi 6 AX200
  1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
  2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  3. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 4.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
  2. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
Storage Interface CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
  2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
  2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)
  3. 8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB CPU:
  1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x OC_PEG power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 2 x system fan headers
  7. 4 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 4 x M.2 Socket 3 connectors
  11. 8 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
  15. 2 x USB 3.2 Gen 1 headers
  16. 2 x USB 2.0/1.1 headers
  17. 1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector
  18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  19. 1 x power button
  20. 1 x reset button
  21. 2 x temperature sensor headers
  22. 1 x Clear CMOS jumper

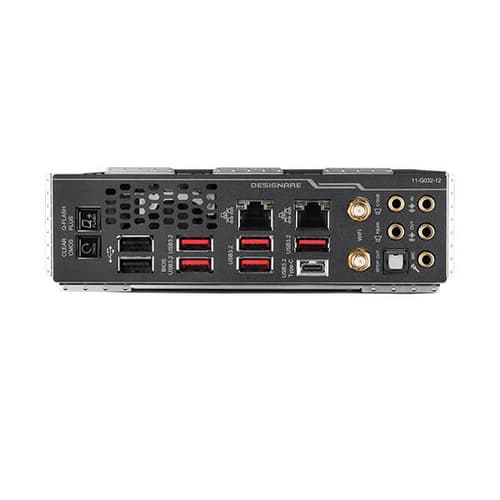

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x Clear CMOS button
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  4. 5 x USB 3.2 Gen 2 Type-A ports (red)
  5. 2 x USB 2.0/1.1 ports
  6. 2 x RJ-45 ports
  7. 2 x SMA antenna connectors (2T2R)
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
    USB TurboCharger
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating System Support for Windows 10 64-bit
Form Factor XL-ATX Form Factor; 32.5cm x 26.9cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket sTRX4
Chipset TRX40
Max Memory Support 256 GB
Supported Memory Type DDR4
Form Factor XL-ATX
Warranty 3 Years
Note

***Features, Price and Specifications are subject to change without notice.
