Model |
PB500 |
|
Type |
Intel Form Factor ATX 12V v2.31 |
|
PFC |
Active PFC(>0.9 typical) |
|
Input Voltage |
100-240 Vac(full range) |
|
Input Current |
8A Max |
|
Input Frequency |
50-60Hz |
|
Output Capacity |
500W |
|
Dimension |
150x140x86mm |
|
Fan Type |
120mm Hydraulic Bearing(HYB)Fan |
|
Efficiency |
86% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Regulatory |
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC |
|
Connectors |
ATX/MB 20+4 Pin x 1 (600mm) CPU/EPS 4+4 Pin x 1(600mm) PCI-e 6+2 Pin x 2 (500mm+150mm) SATA x 4 (500mm+150mm+150mm+150mm) 4 Pin Peripheral x 3 & 4 Pin Floppy x 1 (500mm+150mm+150mm+150mm) |
|
Warranty |
3 Years |
|
Note |
***Features, Price and specifications are subject to change without notice. |
FEATURES
- 80 PLUS Bronze certified
- 120mm Silent Fan
- Single +12V rail
- OPP/UVP/OVP/SCP/OCP/OTP Fully protection
- 3 years warranty (Adjusted according to different regions)
80 PLUS BRONZE CERTIFIED
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. PB500 can be up to 86% efficiency.

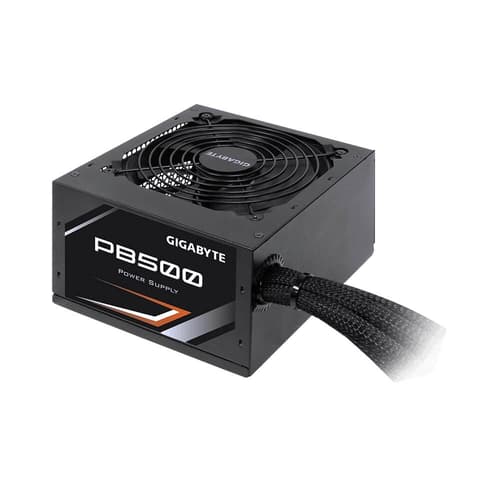

RELIABLE MESH BRAIDED CABLE
PB500 provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

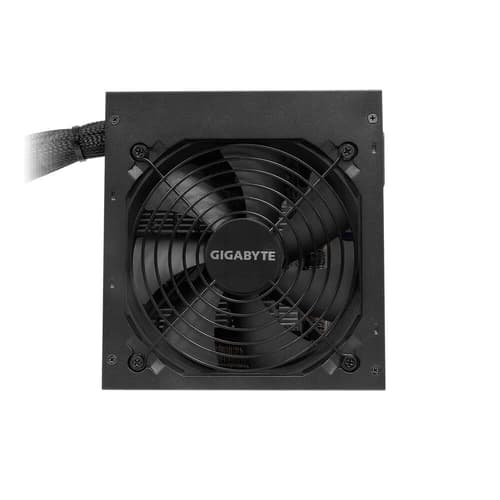

120MM SILENT FAN
120mm silent fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
| Psu | |
| Wattage | 500 WATT |
| Certification | 80 Plus Bronze |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 4 |
| Peripheral (4-Pin) | 3 |
