LGA1200 package:

• 11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
• 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors

L3 cache varies with CPU

• 11th Generation Intel® Core™ i9/i7/i5 processors:
• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 10th Generation Intel® Core™ i9/i7 processors:
• Support for DDR4 2933/2666/2400/2133 MT/s memory modules
• 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
• Support for DDR4 2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  Support for HDMI 1.4 version and HDCP 2.3.

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

CPU:

1 x PCI Express x16 slot:
Supporting PCIe 3.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Chipset:

• 1 x M.2 connector:
  Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD
• 2 x SATA 6Gb/s connectors

Chipset:

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x serial port header
• 1 x Clear CMOS jumper

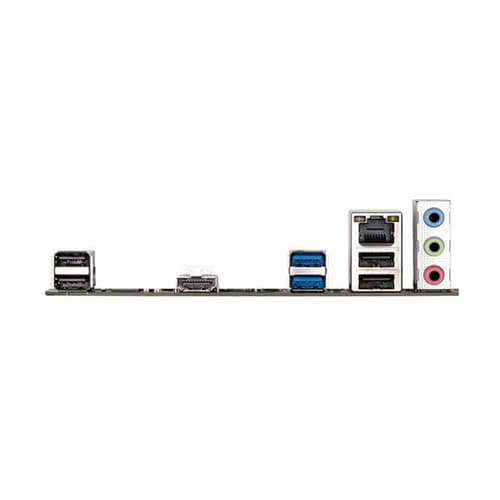

• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center

• Support for Q-Flash
• Support for Xpress Install

• Norton® Internet Security (OEM version)
• LAN bandwidth management software
