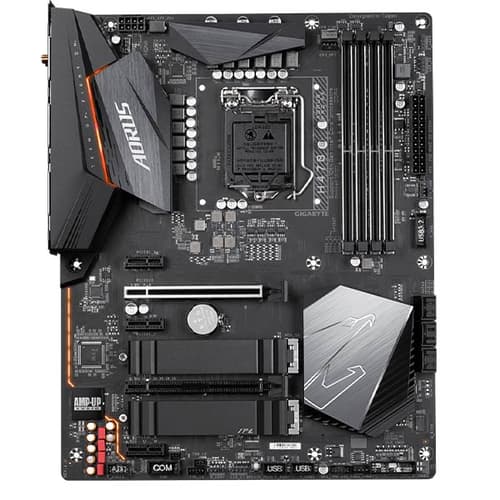

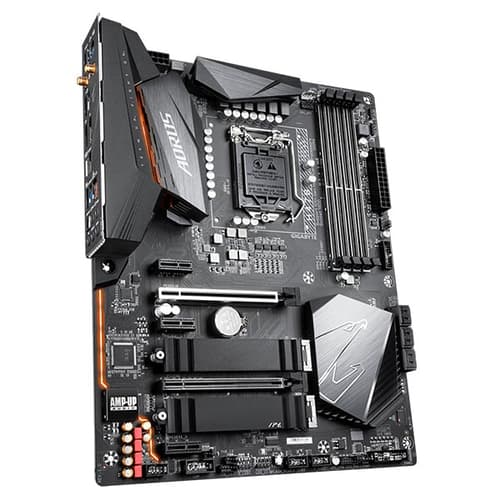

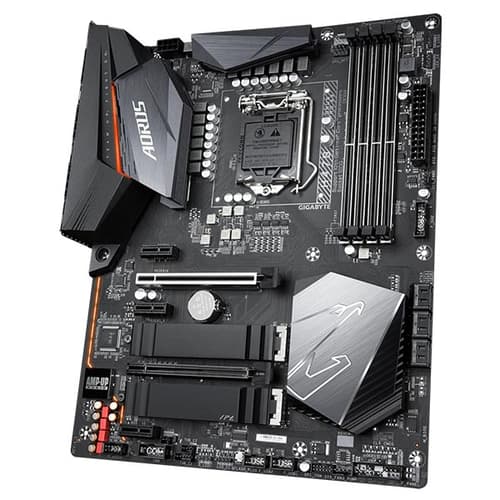

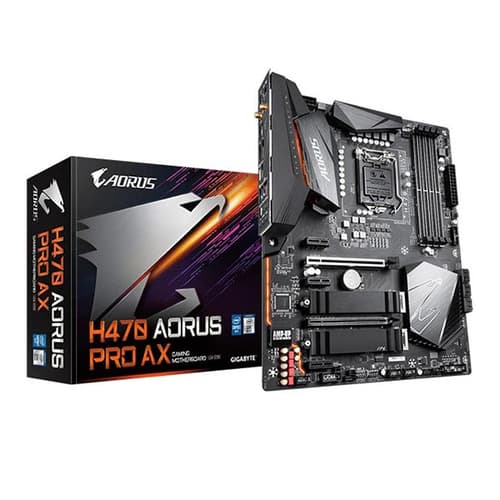

Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)
Gigabyte H470 Aorus Pro AX (Wi-Fi)

Gigabyte H470 Aorus Pro AX (Wi-Fi)

/ Write a review

HDFC bank Offer

  • Brand: GIGABYTE
  • Product Code: H470-AORUS-PRO-AX
  • Availability: Out Of Stock

Gigabyte H470 Aorus Pro AX (Wi-Fi)

₹16,544

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

H470 AORUS PRO AX motherboard use a 11+1 phases digital PWM + Low RDS(on) MOSFETs design to support the latest 10-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 11 Phases Digital VRM Solution
  • Advanced Thermal Design with Enlarged Surface Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen 2 Type-C™ Support
  • ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card

Specifications

CPU

  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset Intel® H470 Express Chipset
Memory
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel® Wi-Fi 6 AX201
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 3 x PCI Express x1 slots
  4. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
 Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB Chipset:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 1 x Q-Flash Plus button
  9. 6 x SATA 6Gb/s connectors
  10. 2 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper

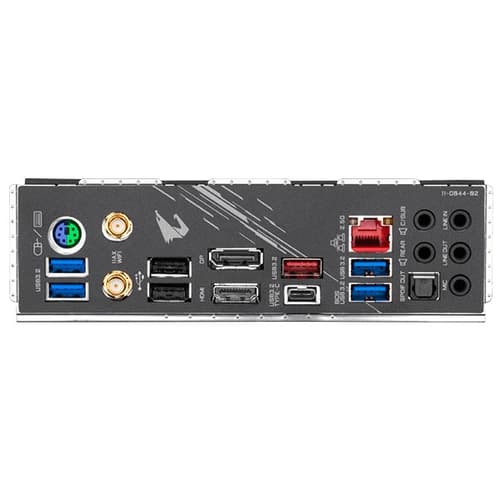

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x HDMI port
  4. 1 x DisplayPort
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  7. 4 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O Controller
 iTE® I/O Controller Chip
H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
 Support for Windows 10 64-bit
Form Factor
 ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset H470
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX

Questions and Answers

Q. can i run 3200mhz ram in this board? and are the m.2 slots support to chipset or to the processor? 10/08/2021

A. The board does supports M.2 NVMe and also the RAM speed limit is 2933mhz

black santa (Verified Buyer )

Q. Can i overclock intel i5 10600k and 3200mhz ram to 4000 mhz and rtx 3060 29/07/2021

A. The the RAM will work with the board's and CPU's limit.

Rudranil Chattaraj (Verified Buyer )

Q. does this motherboard supports i9 10900k which chipset is intel 400 27/01/2021

A. Yes.

AKASH KETHAVATH (Verified Buyer )
