CPU

1. Support for Intel®Core™ i7 processors/Intel®Core™ i5 processors/Intel®Core™ i3 processors/Intel®Pentium®processors/Intel®Celeron®processors in the LGA1151 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel®H110 Express Chipset

Memory

1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor - Intel®HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. Maximum shared memory of 512 MB

Audio

1. Realtek®ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

LAN

1. Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
   (The the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface

Chipset:

1. 4 x SATA 6Gb/s connectors

USB

Chipset:

1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 1 x USB 3.0/2.0 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module (TPM) header
12. 1 x Clear CMOS jumper

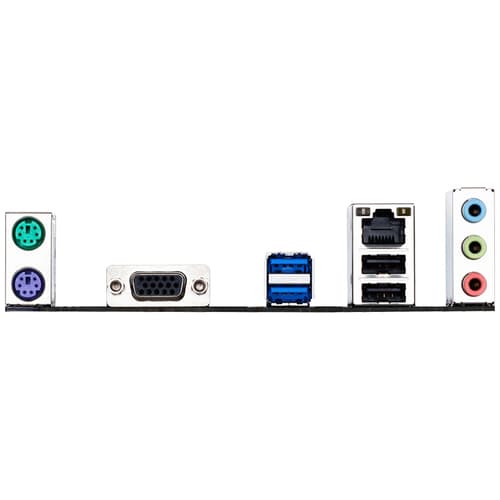

Back Panel Connectors

1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x D-Sub port
4. 2 x USB 3.0/2.0 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

1. iTE®I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Bundle Software

1. Norton®Internet Security (OEM version)
2. cFosSpeed

Operating System

1. Support for Windows 10/8.1 64-bit
2. Support for Windows 7 32-bit/64-bit
   * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor

1. Micro ATX Form Factor; 22.6cm x 17.4cm
