Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard
Gigabyte B550 Vision D (Wi-Fi) Motherboard

Gigabyte B550 Vision D (Wi-Fi) Motherboard

/ Write a review

HDFC bank Offer



  • Brand: GIGABYTE
  • Product Code: B550-VISION-D
  • Availability: Out Of Stock

Gigabyte B550 Vision D (Wi-Fi) Motherboard

₹26,646

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Important Notice :

  • BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
  • The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
  • For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

AMD B550 Creators Motherboard with enhanced power design, effective cooling solution, DDR4 ECC & Non-ECC memory, Dual USB Type-C™ with Titan Ridge, Intel® Wi-Fi 6 802.11ax and dual Intel® LAN with cFosSpeed, Triple PCIe® 4.0/3.0 x16 slots, Dual PCIe® 4.0/3.0 M.2 Connectors

  • AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer by dual PCIe® 4.0/3.0 x16 and one PCIe® 3.0 x16 slots
  • Fully Quadro® QVL Tested
  • The limitless connectivity by dual USB Type-C™ with Titan Ridge
  • High-bandwidth and low-latency network support by dual Intel® GbE LAN with cFosSpeed
  • Intel® Wi-Fi 6 802.11ax makes latency a thing of the past
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
  • Comprehensive connectivity with USB3.2 Gen 2 Type-C™ connection
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Specifications

CPU

AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors
Chipset AMD B550
Memory



  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. AMD Ryzen™ 5000 series processors:
    Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  3. 3rd Gen AMD Ryzen™ Processors:
    Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X® Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN 2 x Intel® GbE LAN chips (1000 Mbit/100 Mbit)
Wireless Communication module
Intel® Wi-Fi 6 AX200
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x8 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x8 mode
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  1. Supporting PCIe 3.0 x4 mode
    * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
  1. Support for RAID 0, RAID 1, and RAID 10
USB Integrated in the CPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+Intel® Titan Ridge Controller:
  1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  3. 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x SATA DOM power connector
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  18. 1 x serial port header
  19. 1 x Clear CMOS jumper
  20. 2 x temperature sensor headers
  21. 1 x Q-Flash Plus button

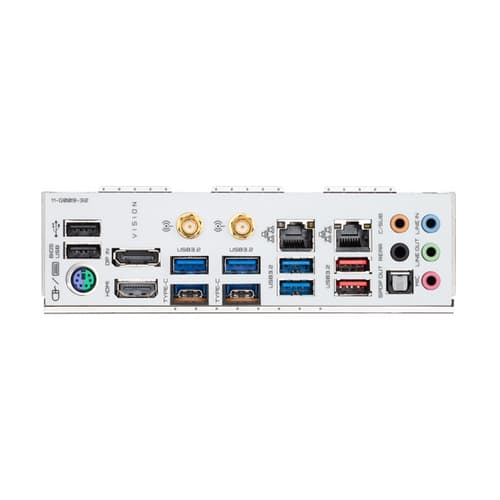

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort In port
  3. 1 x HDMI port
  4. 2 x SMA antenna connectors (2T2R)
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support
  7. 4 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 2 x RJ-45 ports
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System  Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset B550
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years
