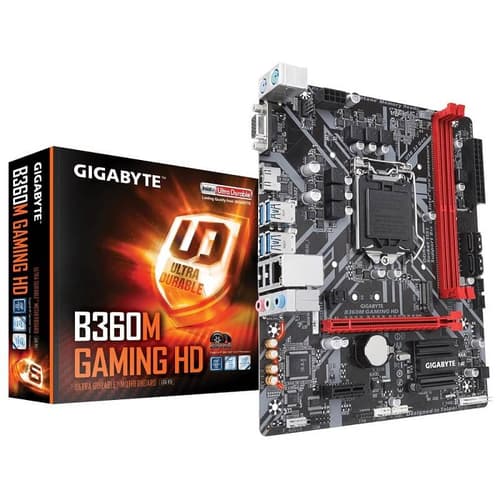

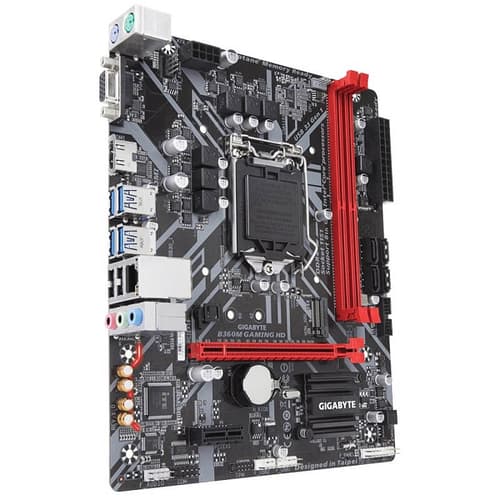

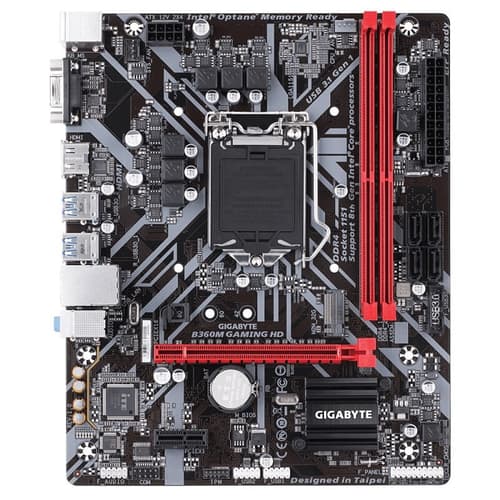

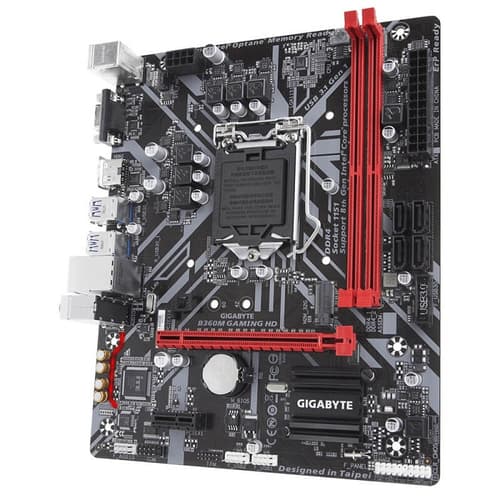

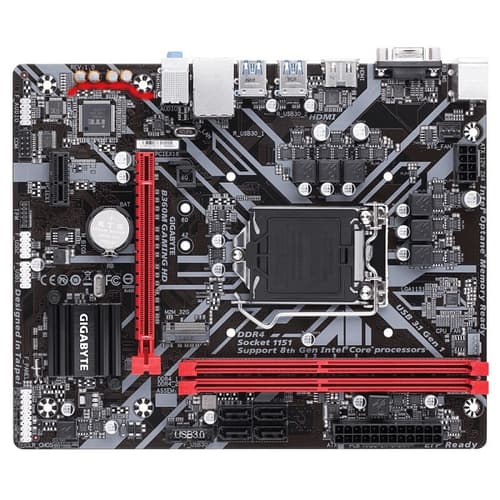

Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD
Gigabyte B360M Gaming HD

Gigabyte B360M Gaming HD

/ Write a review

Tech Yatra sale 2025



Enjoy Instant UPI Discount on Every Transactions.

  • Brand: GIGABYTE
  • Product Code: B360M-GAMING-HD
  • Availability: Out Of Stock

Gigabyte B360M Gaming HD

₹6,445

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

SPECIFICATIONS



CPU
  1. Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
Chipset
  1. Intel® B360 Express Chipset
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
  2. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB Chipset:
  1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 4 x SATA 6Gb/s connectors
  6. 1 x M.2 Socket 3 connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.1 Gen 1 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper

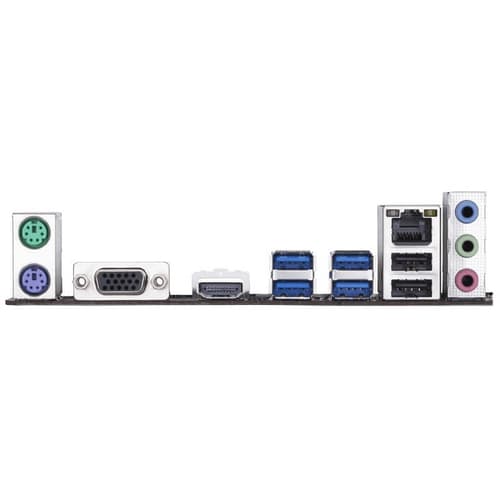

Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x D-Sub port
  4. 1 x HDMI port
  5. 4 x USB 3.1 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Realtek 8118 Gaming LAN bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.

FEATURES



  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 15KV Surge LAN Protection
  • Intel® Optane™ Memory Ready
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.



Motherboard
Platform INTEL
Socket LGA1151
Chipset B360
Max Memory Support 32 GB
Supported Memory Type DDR4
Form Factor Micro-ATX

Questions and Answers

Q. 1) I5 9400f with RX 570 graphics card does support ?
2) Does support m.2 256gb ssd ? 07/05/2020

A.

Yes, the CPU is supported. The graphics card is also compatible and will be a great match with this CPU at this price point.

It will support the M.2 drive as well. Feel free to go ahead with this motherboard.

Shubham (Verified Buyer )

Q. Which gpu can I use in this Mobo with intel i3 9100 f 02/04/2020

A. GTX 1650 Super / GTX 1060 / RX 580 / RX 5500 XT are good combination with the Intel i3 9100f CPU on this motherboard.

Karthik (Verified Buyer )

Q. Can I add 8 gb 3000 mhz ram using intel i3 9100f
02/04/2020

A. The motherboard will support the CPU i3 9100f, but the RAM speed will get downclocked to 2666MHz as the motherboard supports max. 2666MHz RAM.

Karthik (Verified Buyer )

Q. Does this board support Intel i3 9th gen with corsair vengeance 8gb ddr4 3200 MHz? 13/02/2020

A.

The CPU is supported but the memory module is not.

We recommend you use a 2666Mhz memory module of any brand of your choice. The 3200MHz of this RAM will get downclocked to 2666MHz if installed on this motherboard.

Sanjib (Verified Buyer )

Q. Will it support Adata Ultimate SU800 M.2 SSD ? (Actally i m confuse which SSD this mobo support - M.2 or NVMe M.2) 09/01/2020

A.

It supports m.2 and nvme also.

Here are the compatible SSD list.

Manoj Behera (Verified Buyer )
