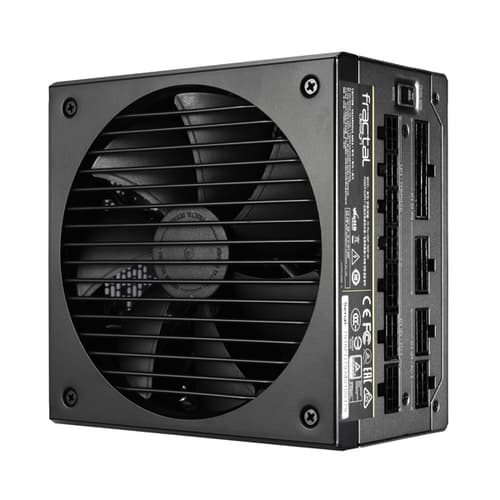

Fractal Design Ion+ 760W 80 Plus Platinum Fully Modular Power Supply
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: FRACTAL DESIGN
- Product Code: FD-PSU-IONP-760P-BK-EU
- Availability: Out Of Stock
Fractal Design Ion+ 760W 80 Plus Platinum Fully Modular Power Supply
Offer Price
₹11,800
(46% off ) ₹21,676
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
Ion+ 760W Platinum
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
- UltraFlex DC wires for effortless cable-routing and connectors
- Custom-tailored 140 mm fan with exceptionally low minimum speed
- 80 PLUS® Platinum Efficiency for optimized electrical performance
The power of silence
A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and under heavy use the custom-tailored 140 mm fan with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable bends and twists effortlessly to make installation and cable-routing a breeze, thanks to an ultra-high strand count wire and special insulation.
Ion+ is available now in 560, 660, 760 and 860 watt capacities, all with 80 PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.Power with a plus
-

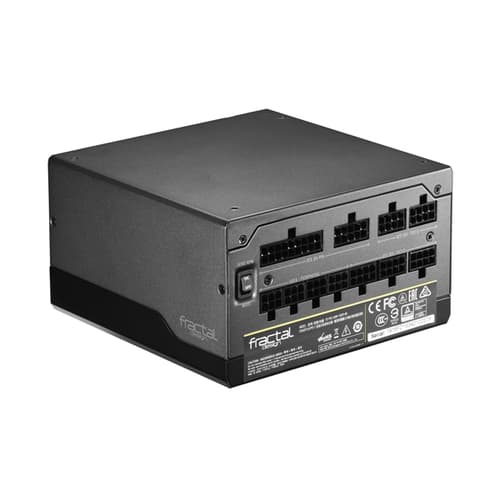

Fully modular design for reduced clutter and maximum ease of installation
-

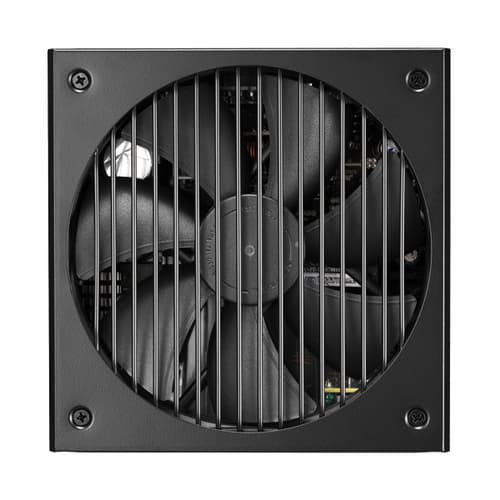

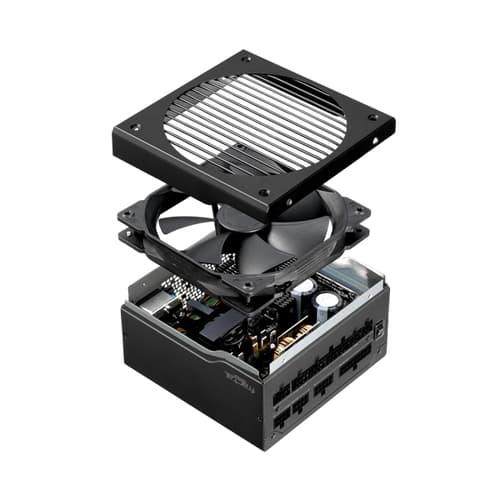

Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
-
Extensive 10 year warranty

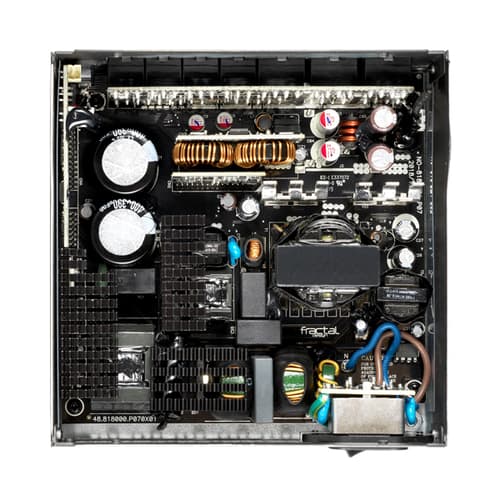

Japanese capacitors
Premium Japanese 105°C capacitors provide enhanced reliability and durability

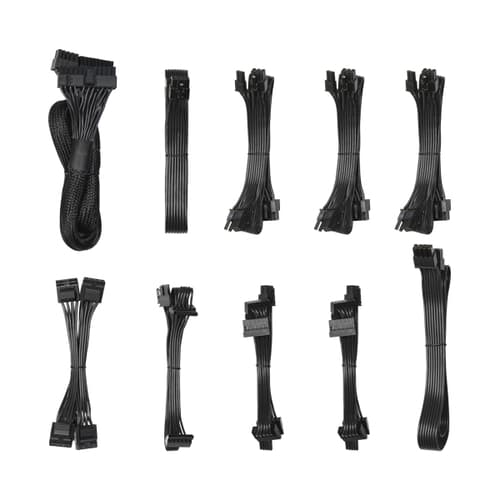

UltraFlex Cables
Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it
Zero RPM
User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
More power, less heat
The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.-
80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
-
Outstanding output quality with tight voltage regulation and extremely low noise and ripple
-
Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
Specifications
| Model | FD-PSU-IONP-760P-BK-EU |
| 80 PLUS® Certification | Platinum |
| Modular cables | Fully modular |
| Cable type | Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire |
| Fan type | Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Sleep State Compliance | C6/C7 |
| Capacitors | Japanese |
| Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load | 100,000 hours |
|
Input voltage
|
100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Number of 12V rails | 1 |
| PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Unit measurements | 150 x 150 x 86 mm |
| Unit weight (unit only) | 1.665 kg |

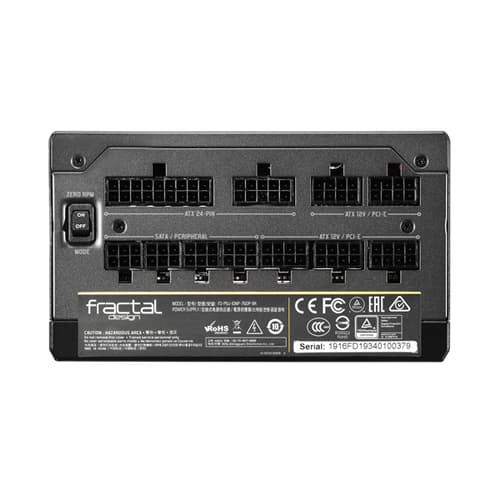

| Connectors | |
| ATX 24-pin | 1 |
| ATX12V 4+4 pin / EPS12V 8-pin | 2 |
| PCIe 6+2 pin | 6 |
| SATA | 10 |
| Peripheral | 4 |
| Cable configuration (length between connectors) | |
| ATX 24-pin | 600 |
| ATX12V 4+4 pin | 700 |
| EPS12V 8-pin | 600 |
| PCIe 6+2 pin | 550+120 |
| SATA | 400+120+120+120, 650+120 |
| Peripheral | 400+120+120+120 |

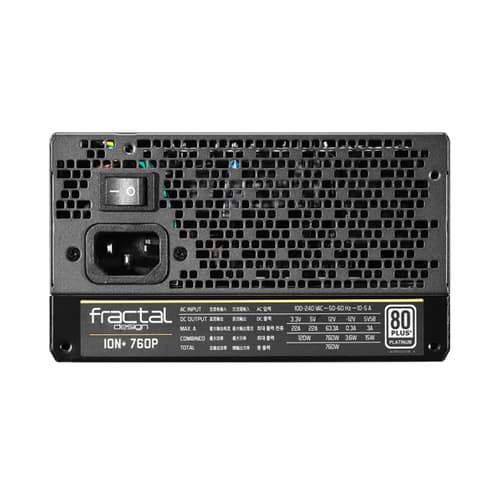

| DC output | |
| 3.3 V | 22A |
| 5 V | 22A |
| 3.3 V and 5 V combined | 120W |
| 12 V | 63.3A |
| -12 V | 0.3A |
| 5 V Standby (+5 Vsb) | 3A |
| Total Power | 760W |
| Other | |
| Package dimensions (W x H x D) | 325 x 110 x 210 mm |
| Package weight | 2.975 kg |
| Package content | Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Psu | |
| Wattage | 760 Watt |
| Series | ION PLUS |
| Certification | 80 Plus Platinum |
| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 6 |
| SATA Connector | 10 |
| Peripheral (4-Pin) | 4 |
| Warranty | 10 Years |
