Fractal Design Ion+ 660 Watt 80 Plus Platinum SMPS
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: FRACTAL DESIGN
- Product Code: FD-PSU-IONP-660P-BK-EU
- Availability: Out Of Stock
Fractal Design Ion+ 660 Watt 80 Plus Platinum SMPS
Offer Price
₹10,500
(47% off ) ₹19,975
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
Ion+ 660W Platinum
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
• UltraFlex DC wires for effortless cable-routing and connectors

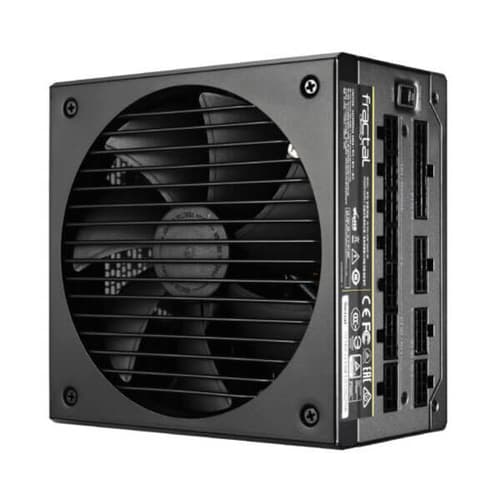

• Custom-tailored 140 mm fan with exceptionally low minimum speed
• 80 PLUS® Platinum Efficiency for optimized electrical performance
Power with a plus

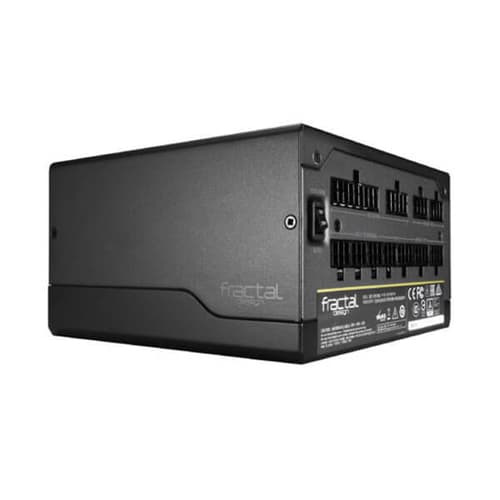

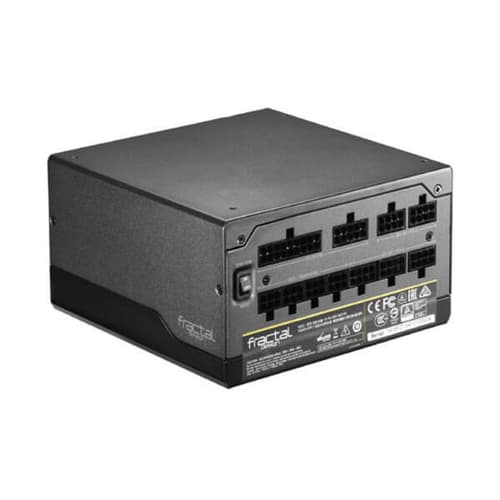

- Fully modular design for reduced clutter and maximum ease of installation

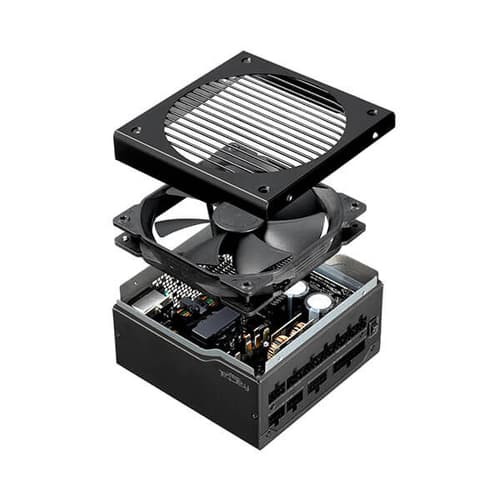

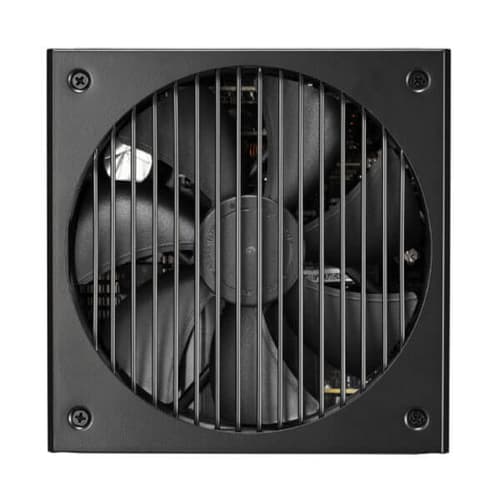

- Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB
- Extensive 10 year warranty

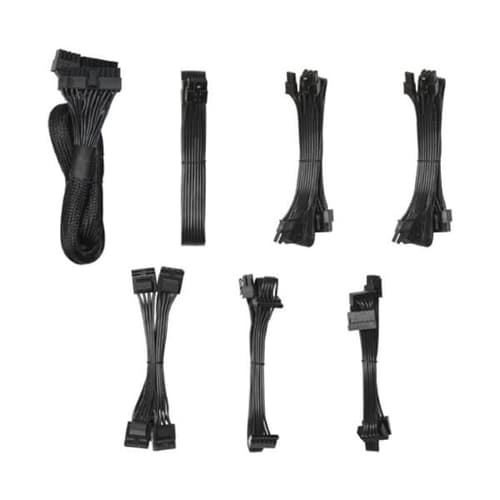

UltraFlex Cables
Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation — not fight it
Zero RPM
User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
More power, less heat
The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.
- 80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
- Outstanding output quality with tight voltage regulation and extremely low noise and ripple
- Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
Secification:
| Model | FD-PSU-IONP-660P-BK-EU |
| 80 PLUS Certification | Platinum |
| Modular cables | Fully modular |
| Cable type |
|
| Fan type |
Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Sleep State Compliance | C6/C7 |
| Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load | 100,000 hours |
| Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Number of 12V rails | 1 |
| PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Unit measurements | 150 x 150 x 86 mm |
| Unit weight (unit only) | 1.61 kg |

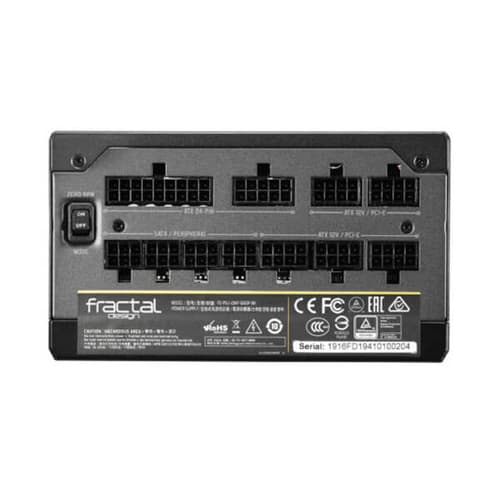

| Connectors | |
| ATX 24-pin | 1 |
| PCIe 6+2 pin | 4 |
| Peripheral | 4 |
| ATX12V 4+4 pin / EPS12V 8-pin | 1 |
| SATA | 10 |
| Cable configuration (length between connectors) | |
| ATX 24-pin | 600mm |
| ATX12V 4+4 pin | 700mm |
| EPS12V 8-pin | N/A |
| PCIe 6+2 pin | 550+120 mm x2 |
| SATA | 400+120+120+120mm, 650+120mm |
| Peripheral | 400+120+120+120 |
| DC output | |
| 3.3 V | 20A |
| 5 V | 20A |
| 3.3 V and 5 V combined | 110W |
| 12 V | 55.0A |
| -12 V | 0.3A |
| 5 V Standby (+5 Vsb) | 3A |
| Total Power | 660W |
| Other | |
| Package dimensions (W x H x D) | 325 x 110 x 210 mm |
| Package content | Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual |
| Package weight | 2.65 kg |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Psu | |
| Wattage | 660 Watt |
| Series | ION PLUS |
| Certification | 80 Plus Platinum |
| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 4 |
| SATA Connector | 10 |
| Peripheral (4-Pin) | 4 |
| Warranty | 10 Years |
