Features:

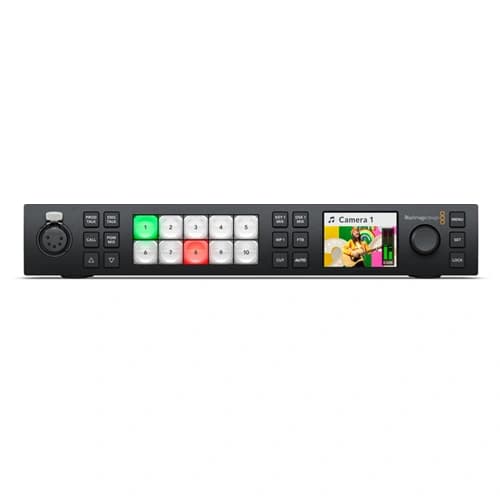

ATEM 1 M/E Constellation HD

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

CONNECTIONS

Total Video Inputs:10

Total Video Outputs:6

SDI Rates: 1.5G, 3G

Total Audio Inputs:2 x balanced 1/4 inch Jack,
1 x 5 pin XLR Talkback.

Total Audio Outputs: 1 x 5 pin XLR Talkback.

SDI Audio Inputs :8 Ch embedded audio on all SDI inputs.

SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs.

Timecode Connections :None

Reference Input : Tri-Sync or Black Burst.

Video Input Re-Sync :On all 10 inputs.

Frame Rate and Format Converters :On all 10 inputs.

SDI Aux Outputs :Any of the 6 SDI outputs.

SDI Preview Outputs :Any of the 6 SDI outputs.

SDI Program Outputs :Any of the 6 SDI outputs.

Down Converted SDI Program Output : None

Webcam Output:1 x USB-C supporting 720p or 1080p at PGM

frame rate.

Total Multi Views :1 x 3G-SDI

Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator : Yes

Talkback : RJ45 for 3rd party talkback systems.

Tally Output :Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet :Supports 10/100/1000 BASE-T.

Computer Interface : 1 x USB-C supports USB 2.0

STANDARDS

SD Video Standards :None

HD Video Standards : 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance:SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

Video Sampling : 4:2:2

Color Precision :10-bit.

Color Space :REC 709

SDI Auto Switching:Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.

PRODUCT SPECIFICS

Upstream Keyers :4

Downstream Keyers :1

Advanced Chroma Keyers :4

Talkback Support:Yes

Mix Minus Support: Yes

Linear/Luma Keyers :5

Transition Keyer (Stinger/DVE) :1 Stinger, 1 DVE.

Total Number of Layers :7

Pattern Generators :5

Color Generators :2

Control Panel :Front fascia emergency switching, software or optional hardware panel.

Routable Windows :16

Tally: Red for program and green for preview indication.

Windows Source Labels :Yes

Multi View Monitoring

Multi View Monitoring: 1 x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters.

Multi View Video Standard: HD

Display Minimum Resolution: 1366 x 768

Media Player

Media Players :2

Channels: Fill and key for each media player.

Media Pool Still Image Capacity:20

Media Pool Clip Capacity:2 x up to 1080p60.

Media Player Clip Length in 720 HD:400 frames.

Media Player Clip Length in 1080 HD :200 frames.

Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format : TGA Sequence.

Media Pool Audio File Format : WAV, MP3 and AIFF.

Display

Front panel: Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Processing

Processing Delay : < 10 lines.

Audio Mixer: 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Down Conversion: None

Software

Control Panel Included: ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.

Software Updates : Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.

Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.

Operating Systems

Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.

Windows 10 and 11.

Power Requirements

Power Supply : 1 x Internal 100 - 240 AC.

Power Usage: 36W

Physical Installation

Physical Installation : 2/3 rack unit width, 1 rack unit height.

Optional Accessories : Teranex Mini Rack Shelf

Environmental Specifications

Operating Temperature : 0° to 40° C (32° to 104° F)

Storage Temperature : -20° to 60° C (-4° to 140° F)

Relative Humidity : 0% to 90% non-condensing

Warranty : 1 Year
