Asus Z10PE-D8 WS Workstation Motherboard
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: ASUS
- Product Code: Z10PE-D8-WS
- Availability: Out Of Stock
Asus Z10PE-D8 WS Workstation Motherboard
₹41,999
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
High Expandable EEB Power with Dual CPU
- Quad Strength Graphic Power – 4-Way PCI-E Gen3 x16 link supporting NVidia GeForce SLI and AMD CrossFireX on demand
- Supreme Power Solution – Premium components deliver industry-leading power efficiency
- Unique BIOS for Dual CPU O.C. –Boost CPU’s overclocking performance up to 10%
- Superb storage flexibility– onboard M.2 x4 and support for ASUS PIKE II cards
- Easy maintenance–ASUS Q-Code Logger, an easy-maintenance button and Dr. Power LED displays unusual power statuses
Specifications
| CPU | Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family |
| Chipset | Intel® C612 PCH |
| Memory | 8 x DIMM, Max. 512GB, DDR4 1866*/2400/2133/1600/1333 MHz RDIMM, LR-DIMM Memory Quad Channel Memory Architecture |
| Graphic | ASpeed AST2400 32MB VGA port*1 - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz |
| Multi-GPU Support | Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology |
| Storage | Intel® C612 chipset : 4 x SATA 6Gb/s port(s), gray, *3, 4 x SATA 6Gb/s port(s), black, *3, 1 x SATA Express port, gray, *4 1 x M.2 Socket 3, *5 Support Raid 0, 1, 5, 10 ASMedia® SATA Express controller : 1 x SATA Express port, gray, , Compatible with 2 x SATA 6.0 Gb/s ports |
| Expansion Slots | 4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *2 2 x PCIe 3.0/2.0 x16 (dual x16) *2 1 x PCIe 3.0/2.0 x16 (dual x8) *2 |
| LAN | Intel® I210-AT, 2 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC1150 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in) Audio Feature : - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Absolute Pitch 192khz/24bit true BD lossless sound |
| USB Ports |
Intel® C612 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, )Intel® C612 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 1 controller : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) |
| Workstation Feature | 7 x PCIe x 16 slot(s) ASWM Enterprise ASUS Dr. Power 12K hours Capacitors ProCool Power Connector Q-Code Logger USB BIOS Flashback™ ASUS PIKE SAS upgrade kit(Optional) |
| Special Features |
ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design- Industry leading Digital 2 Phase DRAM Power Design ASUS Exclusive Features : - Front Panel USB 3.0 Support ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-Slot - ASUS Q-DIMM |

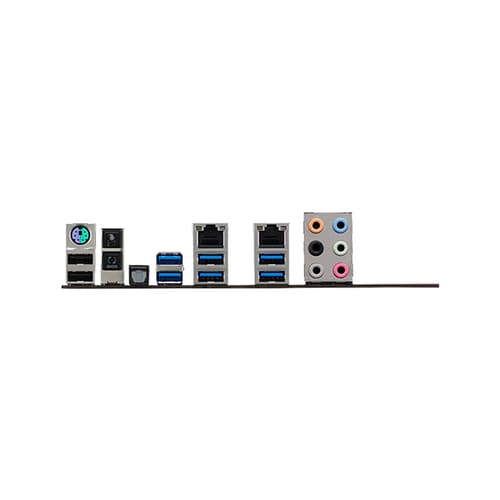

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 2 x LAN (RJ45) port(s) 6 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 *6 1 x Optical S/PDIF out 1 x USB BIOS Flashback® Button(s) 1 x Q-Code Logger button 1 x 8-channel Audio I/O |
| Internal I/O Ports | 1 x AAFP connector 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 1 x TPM connector(s) 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) (2 x 4 -pin) 7 x Chassis Fan connector(s) (7 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x RAID key header(s) 1 x VGA connector(s) 1 x AUX panel header(s) 1 x SMBus header(s) 1 x System panel(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 1 x Serial Port header 1 x ASMB8-iKVM connector 1 x 6-pin EATX 12V_3 Power connector |
| Accessories | I/O Shield 1 x COM port cable(s) 12 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI bridge(s) 1 x 2-port USB 2.0 module(s) 1 x VGA bracket(s) 1 x ASWM Enterprise SDVD |
| BIOS | 128 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 2.6.1, ACPI 3.0, ASUS EZ Flash Utility, ASUS CrashFree Technology |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers、ASUS Utilities、ASUS Update |
| Operating System | Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 Enterprise R2 SP1 64-bit Windows® 7 32/64-bit Windows® 8.1 32/64-bit Windows® 8 32/64-bit |
| Form Factor | EEB Form Factor 12 inch x 13 inch ( 30.5 cm x 33.02 cm ) |
| Weight |
Color Box (1-in-1) Bulk Pack(5-in-1) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Warranty | 3 Years |
| Note |
2400MT/s is supported only when installing E5-2600 v4/E5-1600 v4 CPUs ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA2011-V3 |
| Chipset | C612 |
| Max Memory Support | 512 GB |
| Supported Memory Type | DDR4 |
| Form Factor | EEB |
| Warranty | 3 Years |
