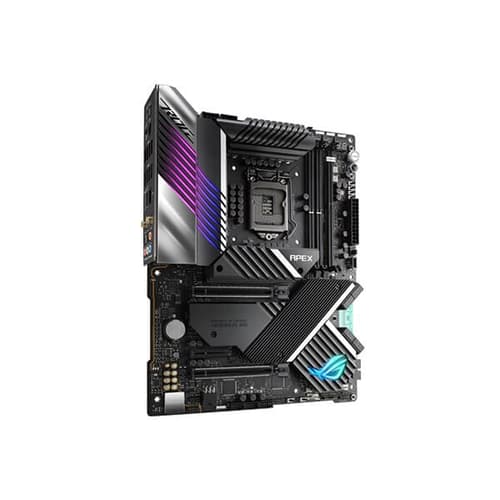

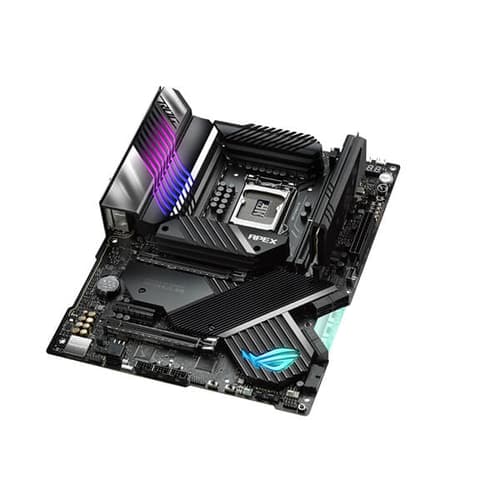

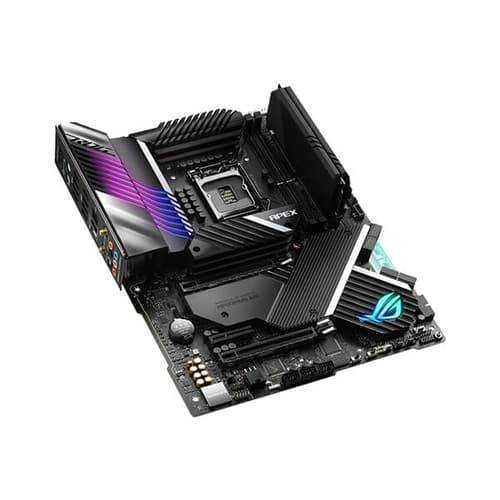

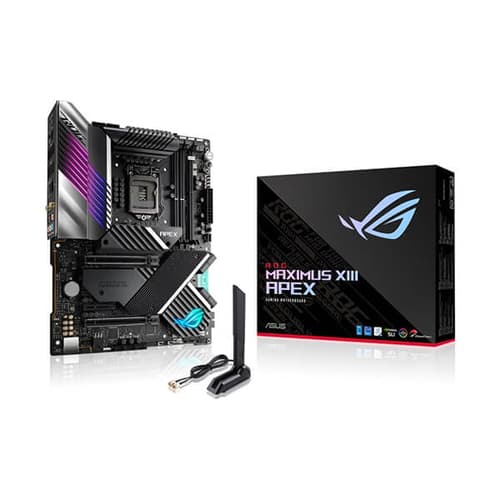

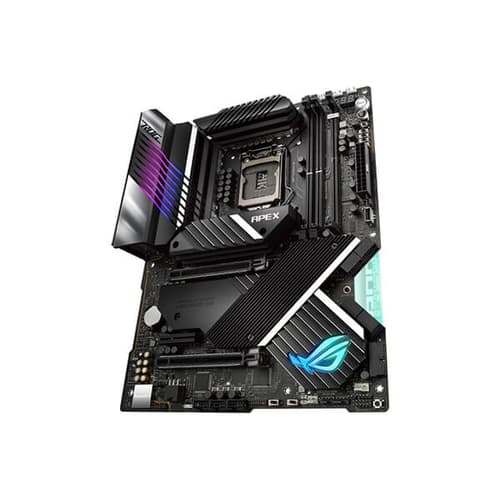

Asus ROG Maximus XIII Apex (Wi-Fi) Motherboard
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: ASUS
- Product Code: ROG-MAXIMUS-XIII-APEX
- Availability: Out Of Stock
Asus ROG Maximus XIII Apex (Wi-Fi) Motherboard
Offer Price
₹44,100
(1% off ) ₹44,550
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
ROG MAXIMUS XIII APEX
Intel® Z590 ATX gaming motherboard with 18 power stages, PCIe 4.0, OptiMem III, Overclocker’s Toolkit, onboard WiFi 6E (802.11ax), Inte® 2.5 Gb Ethernet, quad M.2 with heatsinks, embedded M.2 backplates, a USB 3.2 Gen 2x2 front-panel connector, and Aura Sync RGB lighting
- Intel® Socket LGA 1200: Ready for 11th Gen Intel® Core™ processors and 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- ASUS-Exclusive AI-Driven Enhancements: AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise Cancelation
- Robust Power Solution: 18 teamed power stages rated for 90 amps, ProCool II power connectors, MicroFine alloy chokes, and 10K Japanese-made capacitors
- Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, M.2 heatsinks with embedded backplates, and ROG Water-Cooling Zone
- High-Performance Networking: Onboard WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe® 4.0, quad M.2, and USB 3.2 Gen 2x2 front-panel connector
- Gaming Audio: ROG SupremeFX ALC4080 codec and Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design:Pre-mounted I/O shield, V Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot, and Graphics Card Holder
- Renowned Software: Bundled 1‑year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z590 Chipset |
| Memory |
Memory Channels: 2DDR4 (Dual Channel)
|
| Expansion Slots |
|
| Multi-GPU Support |
NVIDIA 2-Way SLI® Technology* |
| Storage |
Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
|
| Ethernet | ASUS LANGuard |
| Wireless & Bluetooth | Intel® Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready** * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later. ** Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later. |
| USB |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB:Total 9 ports
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover |

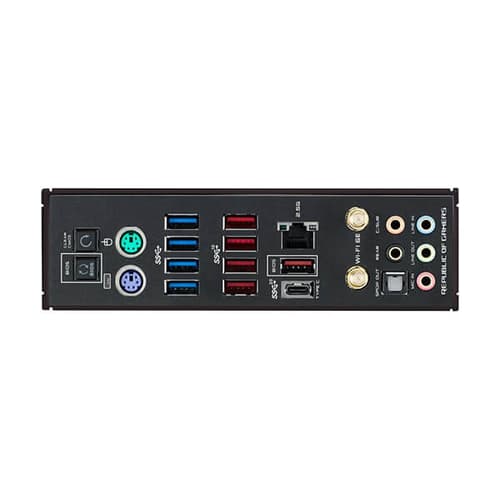

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Intrernal I/O Connectors |
1 x Thunderbolt 4 header
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x 6-pin PCIe Graphics Card connector Storage related 2 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x FS Mode switch 1 x LN2 Mode jumper 1 x Pause switch 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header 1 x V_LATCH switch |
| Special Features |
Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Dual BIOS ASUS HYDRANODE - 3 x Chassis fan support* (CHA_FAN1P, CHA_FAN2P, CHA_FAN3P) * Visit ASUS Website for the latest compatibility list. |
| Software Features |
ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables
|
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1200 |
| Chipset | Z590 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Form Factor | ATX |
| Warranty | 3 Years |
