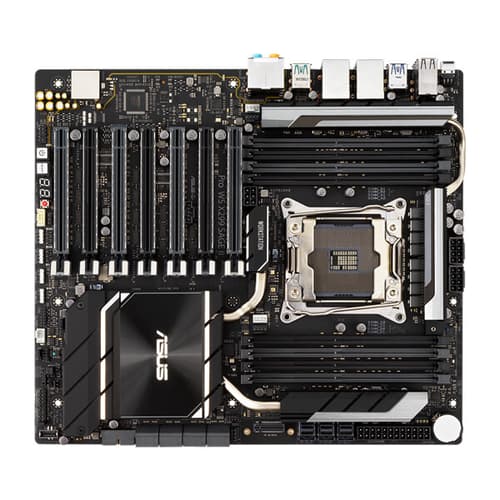

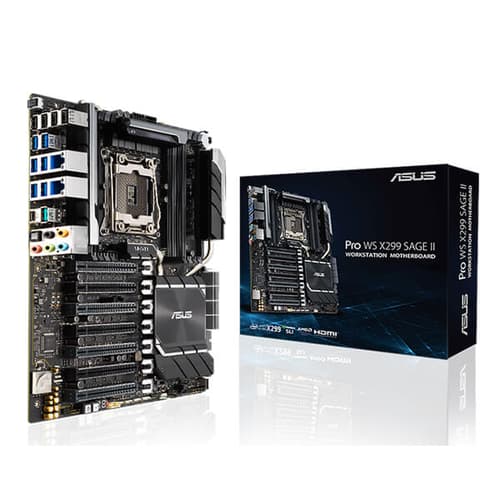

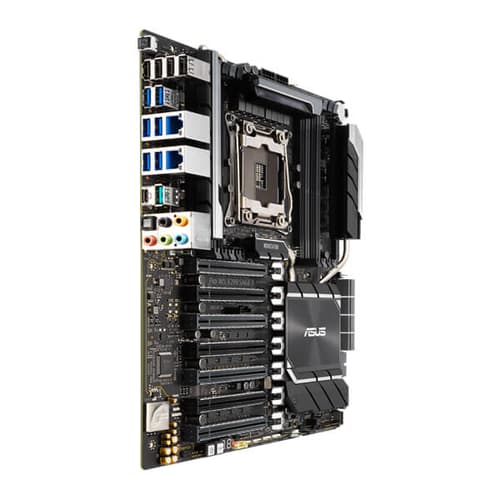

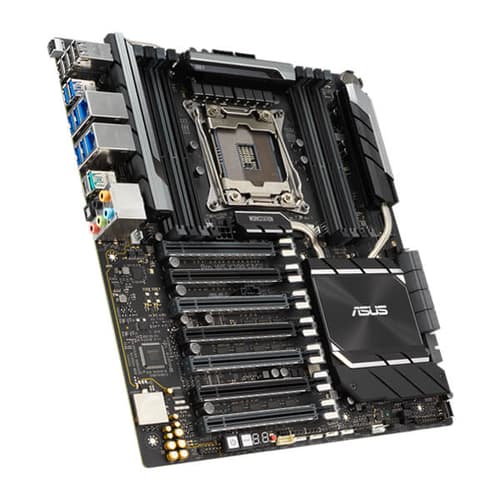

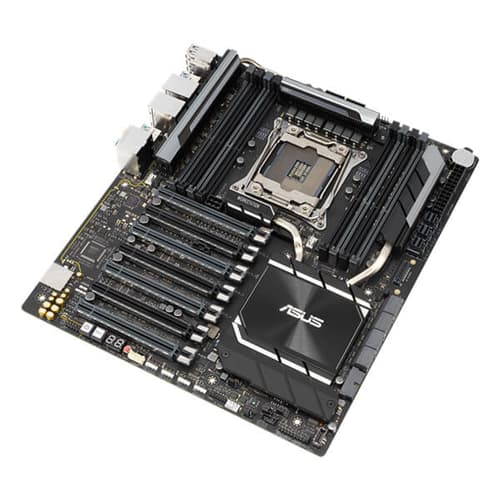

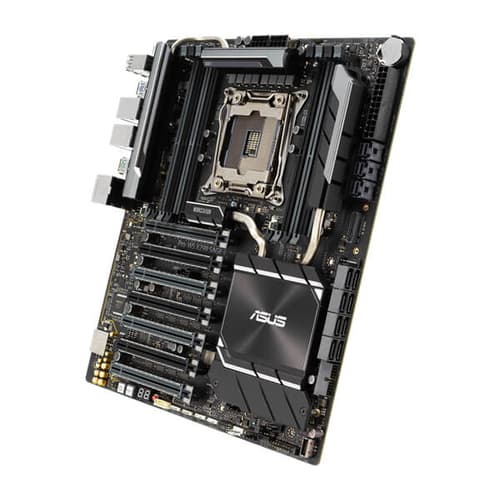

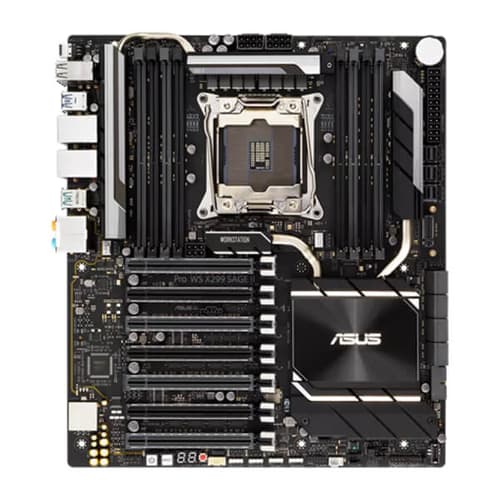

Asus Pro WS X299 Sage II Workstation Motherboard
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: ASUS
- Product Code: PRO-WS-X299-SAGE-II
- Availability: Out Of Stock
Asus Pro WS X299 Sage II Workstation Motherboard
Offer Price
₹68,900
(23% off ) ₹89,999
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
Intel LGA 2066 socket: Ready for the latest Intel® Core™ X-series processors
AI Overclocking: Quickly optimizes CPU performance by profiling the CPU and cooler, achieving results that are extremely close to manual tuning by experts
Dual Intel® 2.5G LAN: Offers increased data throughput and improved efficiency, making it ideal for large file transfers and backup
Fits up to 4-way graphics cards: Includes 7 PCIe Gen 3 x16 slots and supports NVIDIA® SLI and AMD CrossFire™
Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance
Next-gen connectivity: Next-gen transfer speeds with dual M.2, triple U.2 and USB 3.2 Gen 2 Type-A and Type-C™
WORKSTATION MOTHERBOARD
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.
Specification:
| CPU |
Intel® Socket 2066 Core™ X-Series Processors Supports Intel® Virtual RAID on CPU (VROC) |
| Chipset | Intel® X299 |
| Memory | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Multi-GPU Support |
Supports NVIDIA® 4-Way SLI® Technology Supports AMD 4-Way CrossFireX Technology |
| Expansion Slots | 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
| Storage | Intel® X299 Chipset : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s port(s) 3 x U.2 connector Support Raid 0, 1, 5, 10 Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID Supports Intel® Smart Response Technology Intel® Rapid Storage Technology 15 support Intel® Optane™ Memory Ready Intel® Virtual RAID (VROC) support for CPU RAID |
| LAN | Intel® I225-LM |
| Audio | Realtek® S1200A 7.1-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-recording, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - DTS X®:Ultra - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality |
| USB Ports | Intel® X299 Chipset : 8 x USB 3.2 Gen 1 port(s) (6 at back panel, , 2 at mid-board) Intel® X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, ) ASMedia® USB 3.2 Gen 2 controller : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) ASMedia® USB 3.2 Gen 2 controller : 1 x USB 3.2 Gen 2 port(s) (1 at mid-board) |
| Special Features |
OC Design - ASUS PRO Clock II Technology Fan Xpert4 |
| Back I/O Ports | 2 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2(teal blue)Type-A 1 x USB 3.2 Gen 2 (black)USB Type-CTM, 6 x USB 3.2 Gen 1 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™) 1 x Optical S/PDIF out 1 x USB BIOS FlashBack™ Button(s) 1 x 8-channel Audio I/O |
| Internal I/O Ports | 2 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 2 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 3 x U.2 connector 1 x System panel connector 1 x COM port header 1 x W_Pump+ Header 1 x Thermal sensor connector 1 x CPU_OV jumper 1 x M.2 Fan Header 1x 6-pin ATX 12V Power connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 3 x U.2 LED switch header |
| Accessories | User´s manual Addressable LED extension cable 1 x Vertical M.2 bracket set I/O Shield 1 x COM port cable(s) 8 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-connector(s) (0 in 1) |
| Operating System | Windows® 10 64-bit |
| Form Factor | CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm ) |
| Weight |
Color Box(3-in-1) Bulk Pack(5-in-1) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA2066 |
| Chipset | X299 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR4 |
| Form Factor | CEB |
| Warranty | 3 Years |
