• Intel® Socket LGA1700 for 14th Gen Intel Core Processors, 13th Gen Intel Core™ Processors  12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP) OptiMem II

• 1 x DisplayPort
• 1 x HDMI® port
  • Graphics specifications may vary between CPU types.
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI 2.1.
• VGA resolution support depends on processors' or graphic cards' resolution.

Intel® 13th & 12th Gen Processors

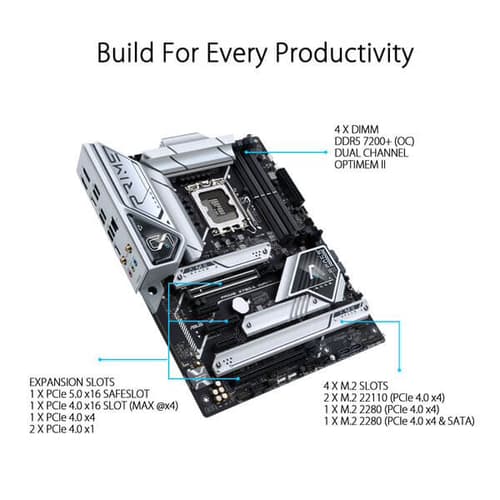

• 1 x PCIe 5.0 x16 slot Intel

Z790 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x4 slot
• 2 x PCIe 3.0 x1 slots

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel®\13th & 12th Gen Processors

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)

Intel® Z790 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.3
• WiFi 6E 6GHz regulatory may vary between countries.
• The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Rear USB (Total 8 ports)

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)

Front USB (Total 7 ports)

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

•  Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Power pre-regulator reduces power input noise to ensure consistent performance
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

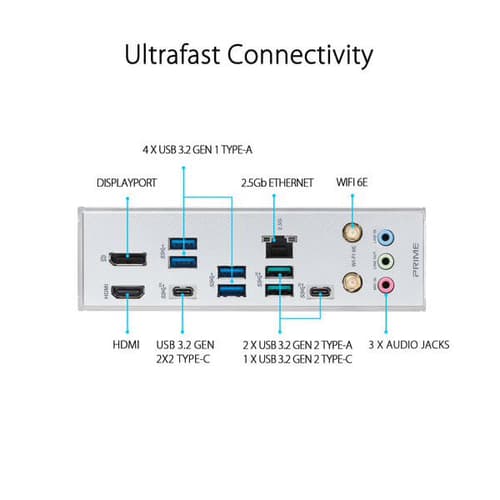

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 3 x Audio jacks

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors

Storage related

• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneou

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x Power button
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ header

ASUS 5X PROTECTION III

• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• LANGuard
• Overvoltage Protection
• Safeslot
• Stainless-Steel Back I/O ASUS

Q-Design

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• Box Headers
• Clear CMOS button
• CPU Socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeDIMM

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

ASUS Exclusive Software Armoury Crate -

• Aura Creator -
• Aura Sync -
• Fan Xpert 4 (with AI Cooling II) -
• Power Saving -
• Two-Way AI Noise Cancellation

AI Suite 3

• TurboV EVO
• DIGI+ VRM
• PC Cleaner ASUS CPU
• Z DTS:X® Ultra
• MyASUS
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR UEFI BIOS ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode MemTest86

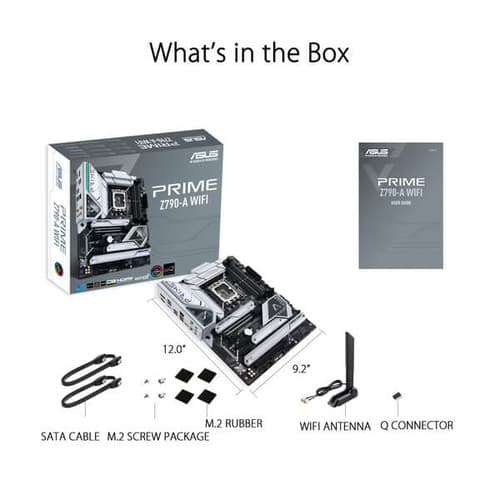

Cables

• 2 x SATA 6Gb/s cables

Miscellaneous

• 1 x ASUS Wi-Fi moving antenna
• 1 x Q-connector
• 2 x M.2 Rubber Packages
• 1 x Screw package for M.2 SSD

Documentation

• 1 x User guide

• Windows 11
• Windows® 10 64-bit
