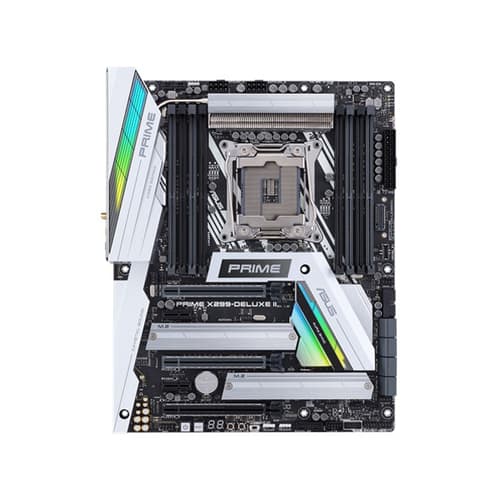

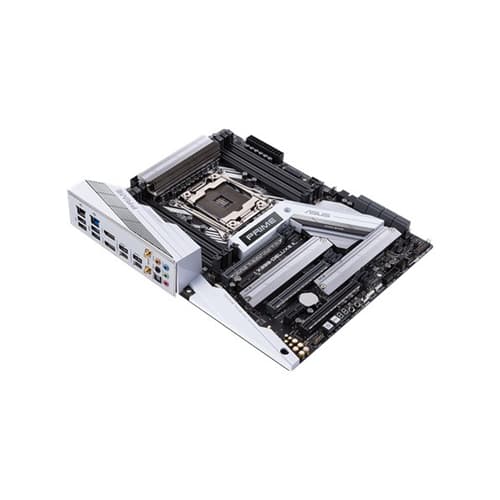

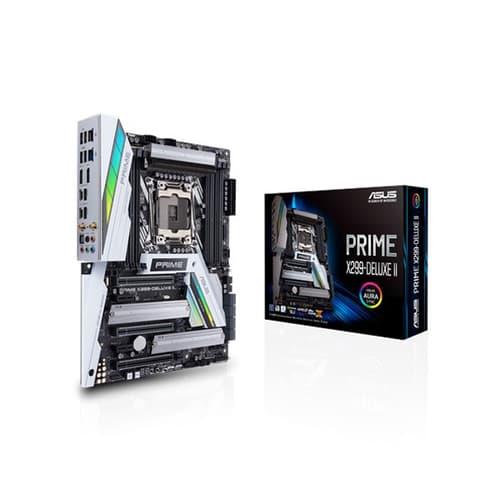

Asus Prime X299-Deluxe II (Wi-Fi) Motherboard
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: ASUS
- Product Code: PRIME-X299-DELUXE-II
- Availability: Out Of Stock
Asus Prime X299-Deluxe II (Wi-Fi) Motherboard
₹49,992
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
- Designed for LGA2066 socket Intel® Core™ X-Series processors to maximize connectivity and speed with triple M.2, front panel USB 3.1 Gen2, onboard 802.11ac WiFi and 5G LAN, Intel® VROC and Intel® Optane™ Memory compatibility
- 5-Way Optimization with Auto-Tuning and FanXpert4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
- Patent-pending SafeSlot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
- Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and LiveDash OLED to give you the option to display system stats or custom graphics
- Pre-mounted IO shield reduces installation time and increases contact with ports for improved connectivity
Specifications
| CPU |
Intel® Socket 2066 Core™ X-Series Processors
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| Chipset |
Intel® X299
|
| Memory |
Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Thunderbolt | 2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
| Multi-GPU Support |
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots |
44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 *1 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) 1 x PCIe 3.0/2.0 x16 (x2 mode) *2 2 x PCIe 3.0/2.0 x1 *1 |
| Storage | Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)*3 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s)*1 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Core™ X-series Processors (6-core above) : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology Enterprise supports Intel® Optane™ Memory Ready |
| LAN |
Aquantia AQC111C 5G LAN
Intel® I219V, 1 x Gigabit LAN ASUS Turbo LAN Utility ASUS LAN Guard |
| Wireless Data Network |
Intel® Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
| Bluetooth |
Bluetooth® 5.0
|
| Audio |
Realtek® S1220A 8-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB Ports |
Intel® Thunderbolt™ 3 Controller :
2 x USB 3.1 Gen 2 port(s) (USB Type-CTM) ASMedia® USB 3.1 Gen 2 controller : *1 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® X299 Chipset : 5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board) Intel® X299 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 1 Hub : 3 x USB 3.1 Gen 1 port(s) (3 at back panel, ) |
| Special Features |
OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection 2 ” LiveDash AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback® - MemOK! II - AI Suite 3 - Ai Charger - Onboard Button : Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Pre- mounted I/O shield - ASUS NODE : hardware control interface ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector DIY Friendly Design - Procool - SafeSlot Q-Installer - Auto download driver and software. Friendly for first PC builder. |

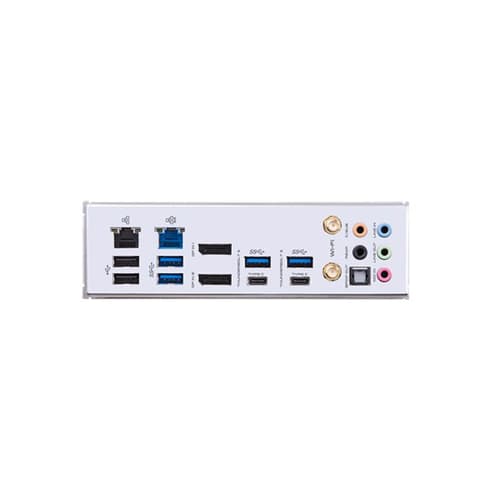

| Back I/O Ports |
2 x Thunderbolt 3 ports TypeC™
2 x DisplayPort IN ports for Thunderbolt™ 3 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback®) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0 1 x AQC-111C 5G LAN port |
| Internal I/O Ports |
1 x Aura Addressable Strip Header(s)
1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Node Connector(s) 1 x USB BIOS Flashback® button(s) 1 x USB 3.1 Gen 2 front panel connector 1 x Q-Code |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information
|
| Manageability |
WfM 2.0, DMI 3.0, WOL by PME, PXE
|
| Support Disc |
Drivers
ASUS Utilities EZ Update Anti-virus software (OEM version) |
| Operating System |
Windows® 10 64-bit
|
| Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA2066 |
| Chipset | X299 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Form Factor | ATX |
| Warranty | 3 Years |
