FEATURES

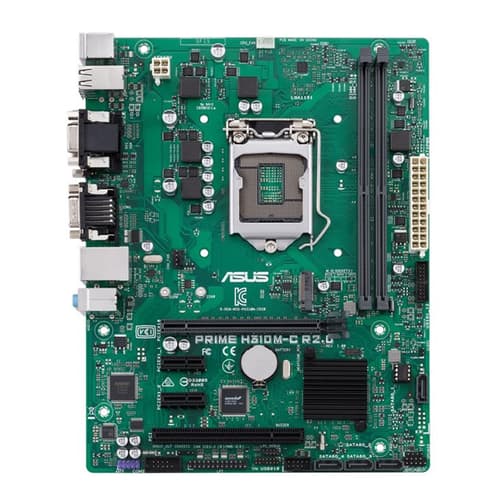

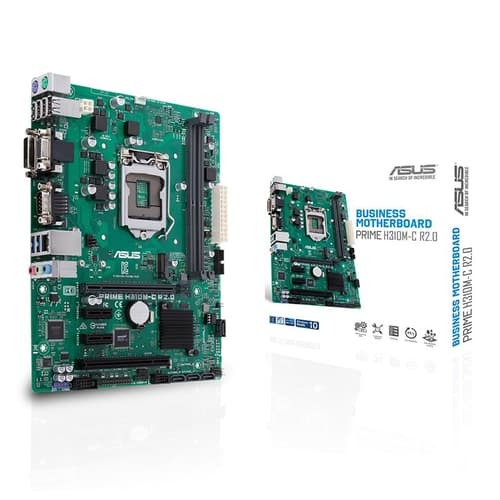

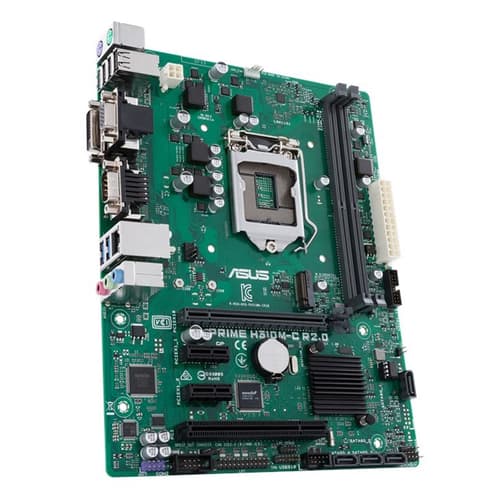

Micro-ATX H310 business motherboard with enhanced security, reliability and manageability
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit to make customization faster and more efficient
SPECIFICATIONS
| CPU | Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® H310 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * The maximum memory frequency supported varies by processor. ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 2 displays simultaneously |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 2 x PCIe 2.0 x1 1 x PCI |
| Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode) 4 x SATA 6Gb/s port(s) |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC *1 - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports | Intel® H310 Chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board) |
| Special Features | Bespoke Motherboard Design & Business Focused Features : - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi+VRM |

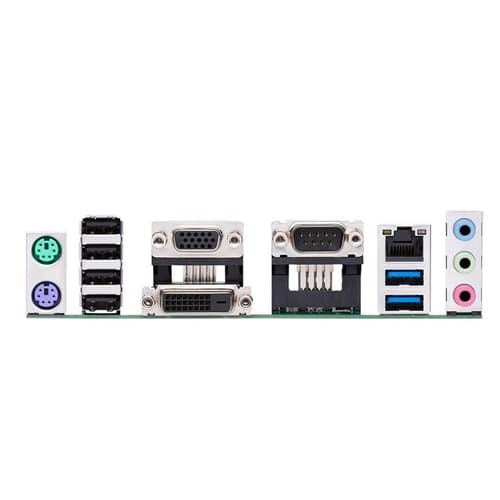

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode) 1 x LPT header 2 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header 1 x Speaker connector |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit |
| Manageability | WOL, PXE |
| Support Disc | Drivers ASUS Commercial BIOS Kits ASUS Watchdog Timer |
| Form Factor | uATX Form Factor 9.6 inch x 7.6 inch (24.4 cm x 19.3 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1151 |
| Chipset | H310 |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Form Factor | U-ATX |
