Asus Prime H310M-C R2.0/CSM
7.5% Instant Discount on HDFC Credit & Debit Card EMI
Enjoy Instant UPI Discount on Every Transactions.
- Brand: ASUS
- Product Code: PRIME-H310M-C-R2.0-CSM
- Availability: Out Of Stock
Asus Prime H310M-C R2.0/CSM
Offer Price
₹5,100
(2% off ) ₹5,200
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
FEATURES
ASUS Prime H310M-C R2.0/CSM LGA1151 (300 Series) DDR4 M.2 VGA mATX Motherboard
- Designed exclusively for 9th generation Intel® Core™ processors to maximize connectivity and speed with dual integrated M.2 slots
- ASUS Corporate Stable Model complimentary advance replacement and long lifecycle
- ASUS Shield keeps your hardware and data protected with a self-recovering BIOS and anti-moisture coating
- Fixed-position and color-coded connections allow for easy identification and assembly to optimize production line installation
- LPC debug header streamlines motherboard troubleshooting
SPECIFICATIONS
| Model | Prime H310M-C R2.0/CSM |
| CPU | Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® H310 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) Hyper DIMM support is subject to the physical characteristics of individual CPUs. The maximum memory frequency supported varies by processor DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 2 displays simultaneously |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 2 x PCIe 2.0 x1 1 x PCI |
| Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode) 4 x SATA 6Gb/s port(s) |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports | Intel® H310 Chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board) |
| Special Features | Bespoke Motherboard Design & Business Focused Features : - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi+VRM |

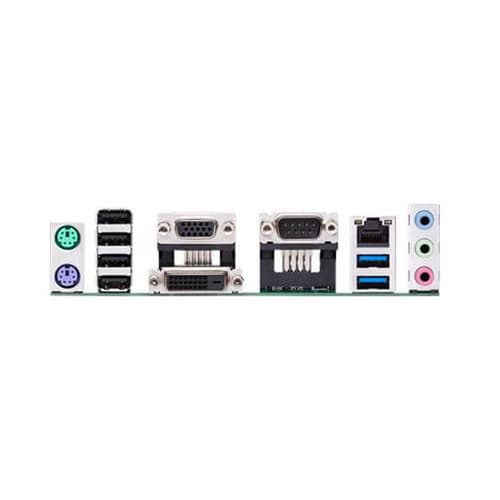

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode) 1 x LPT header 2 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header 1 x Speaker connector |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit |
| Manageability | WOL, PXE |
| Support Disc | Drivers ASUS Commercial BIOS Kits ASUS Watchdog Timer |
| Form Factor | uATX Form Factor 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1151 |
| Chipset | H310 |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Form Factor | Micro-ATX |
