CPU

Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® H310

Memory

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/D-Sub ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)

2 x PCIe 2.0 x1

3 x PCI

Storage

Intel® H310 Chipset :

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1

4 x SATA 6Gb/s port(s), gray,

LAN

Realtek® RTL8111H, 1 x Gigabit LAN

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

Intel® H310 Chipset :

4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)

Intel® H310 Chipset :

6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Special Features

ASUS 5X Protection III :

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: 5 Phase digital power design

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- PC Cleaner

- File Transfer

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert 2+

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)

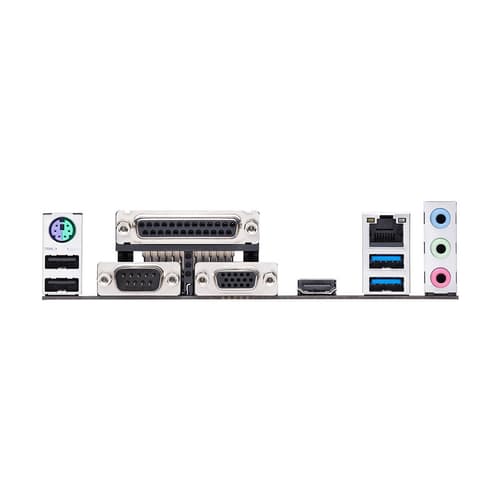

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps

2 x USB 2.0

1 x COM port(s)

1 x LPT port

3 x Audio jack(s)

Internal I/O Ports

1 x RGB Header(s)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x SCD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

30.5 cm x 19.1 cm (12 x 7.5 )

Warranty

3 Years

Note

***Features, Price and Specifications are subject to change without notice.
