Asus Prime B460-Plus Motherboard
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: ASUS
- Product Code: PRIME-B460-PLUS
- Availability: Out Of Stock
Asus Prime B460-Plus Motherboard
₹10,400
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
FEATURES
Intel® B460 (LGA 1200) ATX motherboard with RGB headers, dual M.2, DDR4 2933MHz, HDMI, D-sub, DVI, USB 3.2 Gen 1 ports, Intel® Optane memory ready, SATA 6 Gbps
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
- 5X Protection III: Multiple hardware safeguards for all-round protection.
- Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds.
SPECIFICATIONS
| CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B460 |
| Memory | Intel® B460 Chipset 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b 1 x DVI-D 1.4 *Graphics specifications may vary between CPU types. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | Intel® 10th Gen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® B460 Chipset 1 x PCIe 3.0/2.0 x16 (x4 mode) 2 x PCIe 3.0/2.0 x1 2 x PCI |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 4 x USB 2.0 port(s) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Safeslot core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Lighting Control - Standard RGB headers |

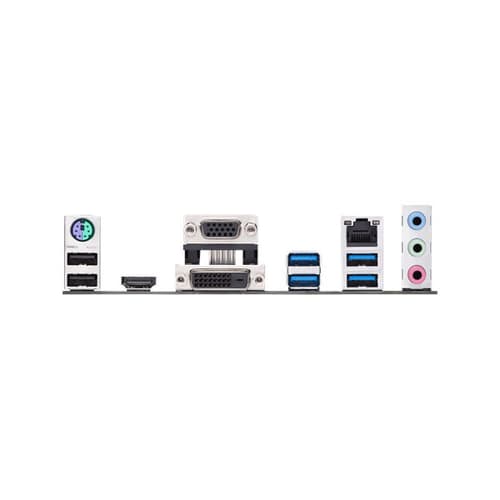

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AAFP connector 2 x Lighting Control RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.0 inch ( 30.5 cm x 22.86 cm) |
| Warranty | 3 Years |
| Note |
*M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1200 |
| Chipset | B460 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Form Factor | ATX |
