FEATURES
- 5X Protection II – Advanced hardware safeguards for all-around protection
- DDR4 memory compatibility
- Epic gaming audio with LED-illuminated shielding
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Fan Xpert: Active Quiet & Cool
SPECIFICATIONS
| CPU | The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Supports Intel® Turbo Boost Technology 2.0 Supports Intel® 14 nm CPU Intel® Socket 1151 for 7th/6th Generation Core™ i3/Pentium®/Core™ i7/Celeron®/Core™ i5 Processors |
| Chipset | Intel® H110 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2133/2400 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. |
| Graphic | - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Multi-VGA output support : RGB/HDMI ports - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports up to 2 displays simultaneously Supports Intel® Insider™, Clear Video HD Technology, InTru™ 3D, Quick Sync Video Integrated Graphics Processor |
| Expansion Slots | 1 x PCIe 3.0/2.0 x1 (x16 mode) 2 x PCIe 2.0 x1 |
| Storage | Intel® Rapid Storage Technology supports Intel® H110 chipset : gray, 4 x SATA 6Gb/s port(s), |
| LAN | Realtek® RTL8111H |
| Audio | - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC |
| USB Ports | Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board) Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at mid-board, 2 at back panel, blue) |
| Special Features | ASUS EZ DIY : - Push Notice - ASUS UEFI BIOS EZ Mode - ASUS EZ Flash 3 - ASUS CrashFree BIOS 3 Remote Entertainment - Media Streamer ASUS EPU : - EPU ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM ASUS 5X Protection II : - ASUS ESD Guards - Electrostatic discharge protection - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS LANGuard - 2.5X higher surge tolerance - ASUS DIGI+ VRM - 5 Phase digital power design ASUS Exclusive Features : - Ai Charger - USB 3.0 Boost - Low EMI Solution - PC Cleaner - Mobo Connect - Anti-Surge - AI Suite 3 ASUS Quiet Thermal Solution : - ASUS Fan Xpert - Stylish Fanless Design Heat-sink solution |
| Operating System Support | Windows® 8.1 , 64bit Windows® 10 , 64bit Windows® 7 , 32bit/64bit |

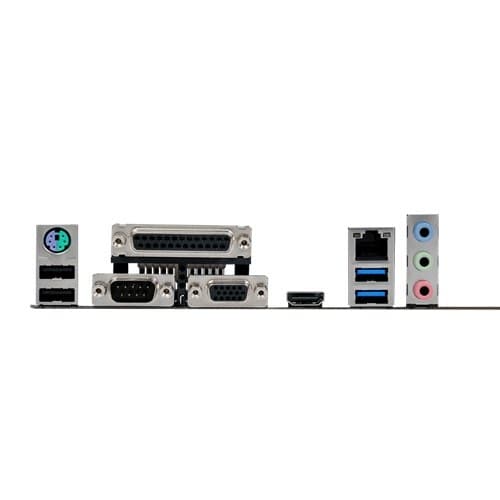

| Back I/O Ports | 1 x LAN (RJ45) port(s) 1 x HDMI 1 x COM port(s) 1 x D-Sub 1 x PS/2 keyboard/mouse combo port(s) 1 x Parallel port(s) 3 x Audio jack(s) 2 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 |
| Internal I/O Ports | 1 x S/PDIF out header(s) 1 x System panel(s) 1 x 4-pin ATX 12V Power connector(s) 1 x TPM header 4 x SATA 6Gb/s connector(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x 24-pin EATX Power connector(s) 1 x Clear CMOS jumper(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Fan connector(s) (1 x 4 -pin) |

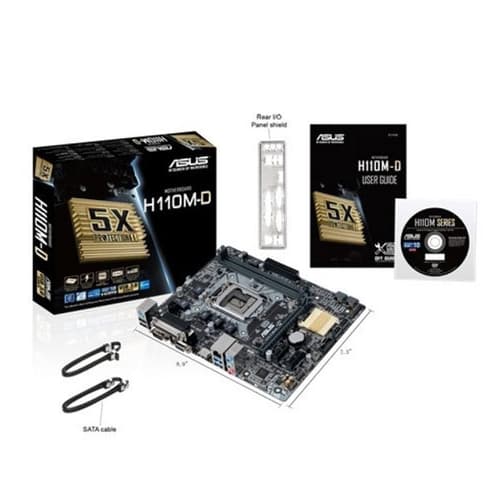

| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Form Factor | 8.9 cm x 7.3 cm ( 22.6 cm x 18.5 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1151 |
| Chipset | H110 |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Form Factor | M-ATX |
