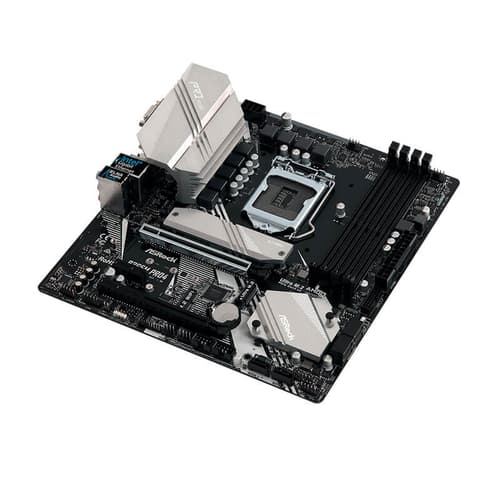

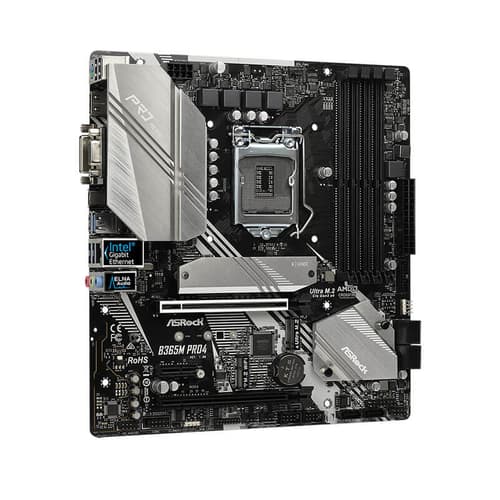

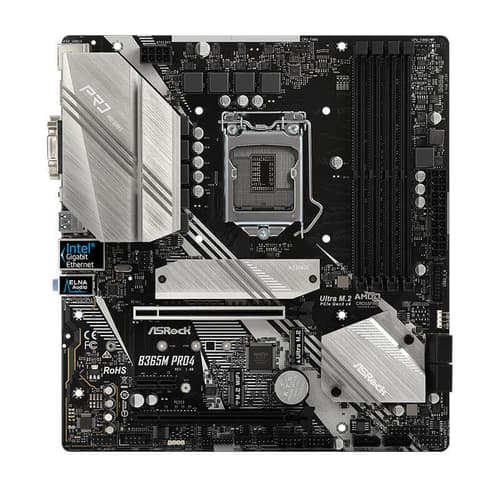

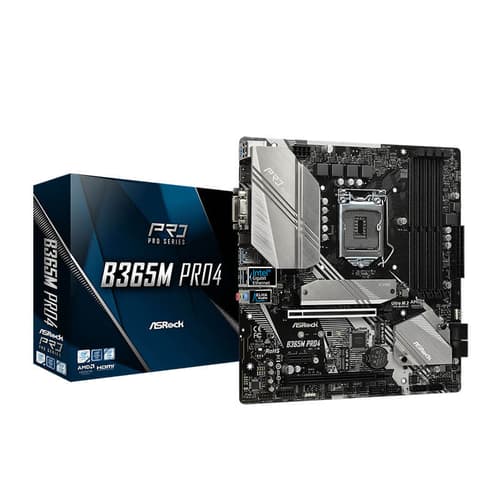

ASRock B365M Pro4 Motherboard
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: ASROCK
- Product Code: B365M-PRO4
- Availability: Out Of Stock
ASRock B365M Pro4 Motherboard
₹7,521
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- Supports DDR4 2666
- 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen3 x4 & SATA3, 1 x PCIe Gen3 x4)
- 7 USB 3.1 Gen1 (2 Front, 4 Rear, 1 Type-C)
- Intel® Gigabit LAN
Specifications
| Unique Feature |
ASRock Super Alloy
- Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology |
| Chipset | - Intel® B365 |
| Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment |
| Graphics | - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots | - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* - 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module *Supports NVMe SSD as boot disks
|
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports Intel® Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Connector | - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Support in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. |

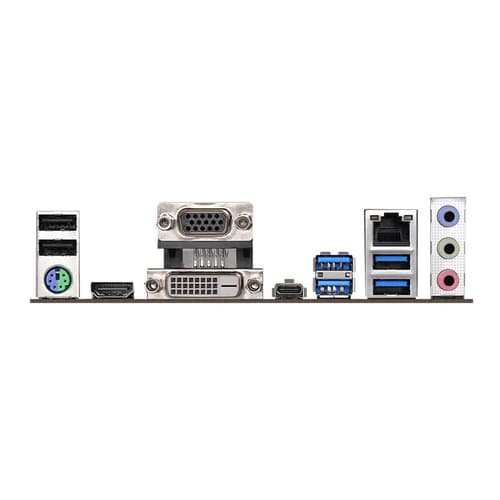

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Software and UEFI
|
Software
- ASRock A-Tuning - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
Support CD
|
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
|
|
Accessories
|
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
|
Hardware Monitor
|
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCSA, VCCST |
|
Form Factor
|
- Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
- Solid Capacitor design |
|
OS
|
- Microsoft® Windows® 10 64-bit
|
|
Certifications
|
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required) |
|
Warranty
|
3 Years
|
|
Note
|
***Features, Price and Specifications are subject to change without notice.
|
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1151 |
| Chipset | B365 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Form Factor | M-ATX |
