Cooler Master MasterBox CM694 (Black)

Cooler Master MasterBox CM694 (Black)

₹10,750
Product Code: MCB-CM694-KG5N-S00
Availability: Out Of Stock
Easy EMIs start from ₹ by Snapmint View More
  • SERIES MASTERBOX
  • TYPE MID TOWER
  • 5.25" BAYS 2
  • 3.5" BAYS 3
  • 2.5" BAYS 8
  • EXPANSION SLOTS 7
  • MAX RADIATOR SUPPORT 360
  • MAX FAN SUPPORT 7
  • COLOR BLACK
  • SIDE PANEL TRANSPARENT
  • MOTHERBOARD SUPPORT E-ATX
  • WARRANTY 3 Years
  • NOTE***

    ***Features, Price and Specifications are subject to change without notice.

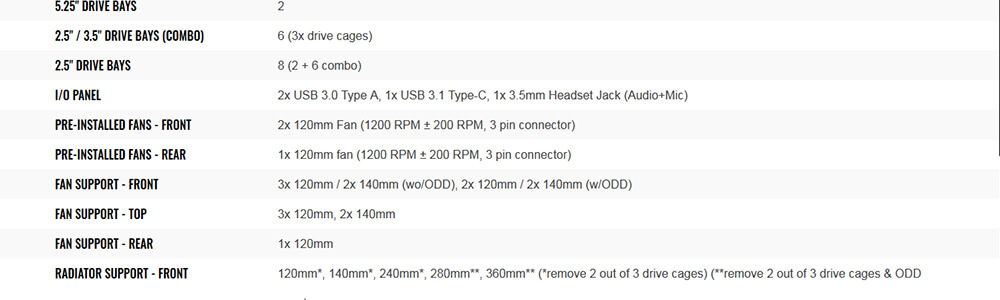

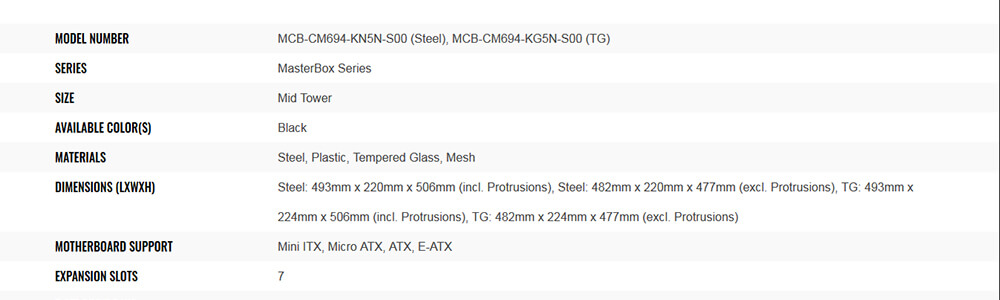

Specifications
Model Number MCB-CM694-KG5N-S00
Series MasterBox Series
Size Mid Tower

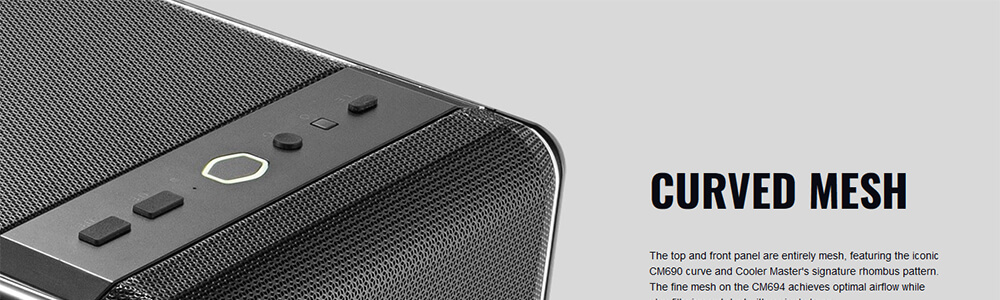

Materials Steel, Plastic, Tempered Glass, Mesh

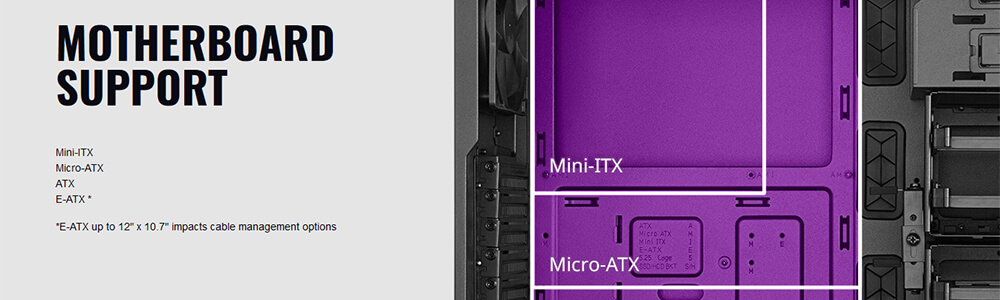

Motherboard Support Mini ITX, Micro ATX, ATX, E-ATX
Expansion Slots 7
5.25" Drive Bays 2

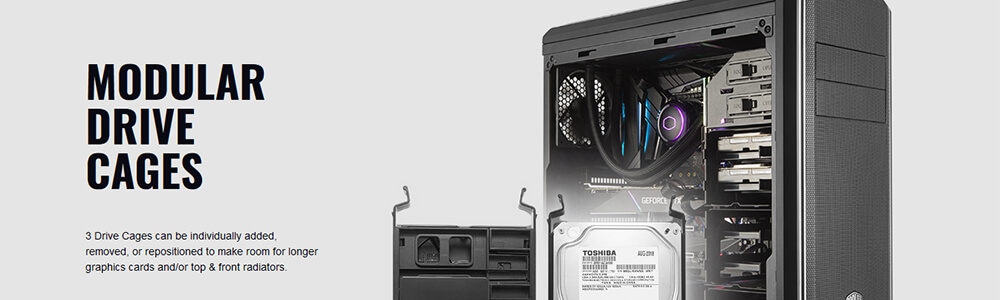

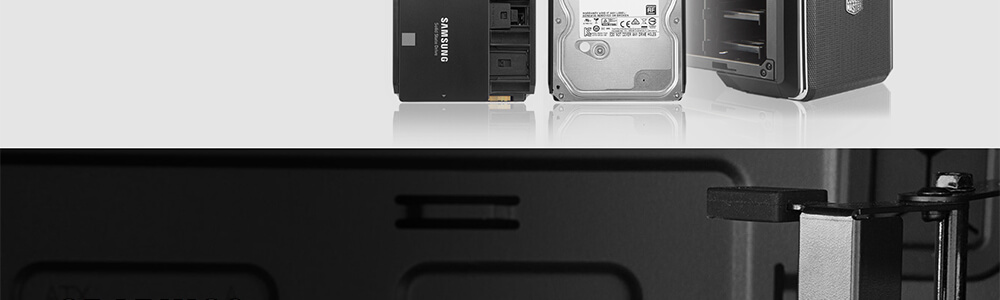

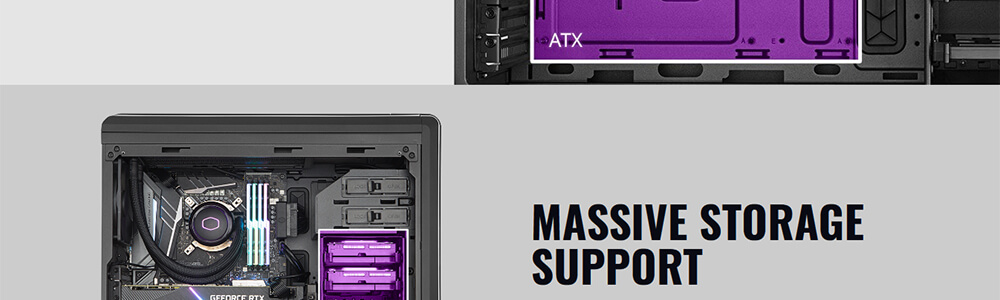

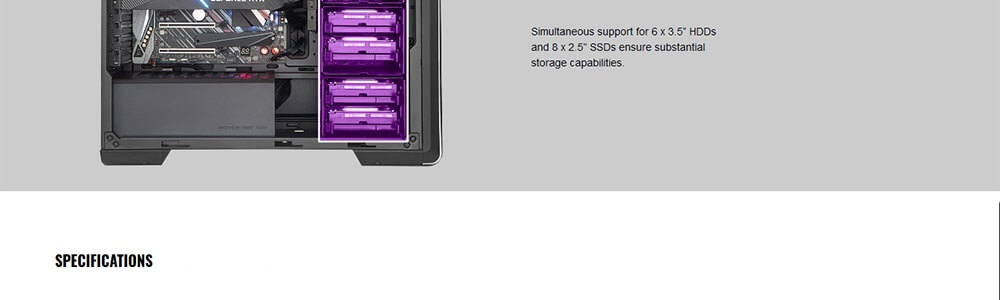

2.5" / 3.5" Drive Bays (combo) 6 (3x drive cages)
2.5" Drive Bays 8 (2 + 6 combo)

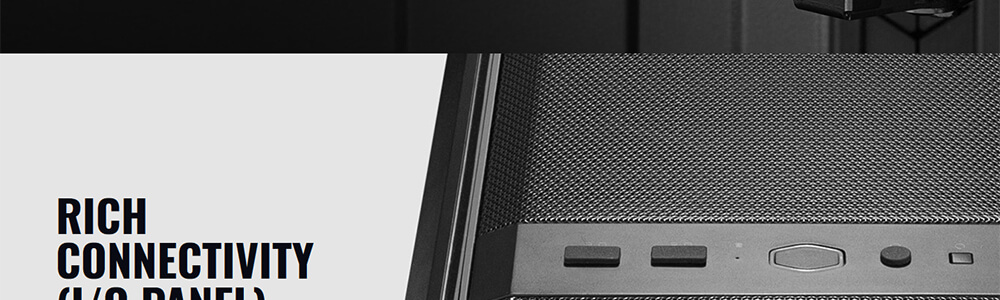

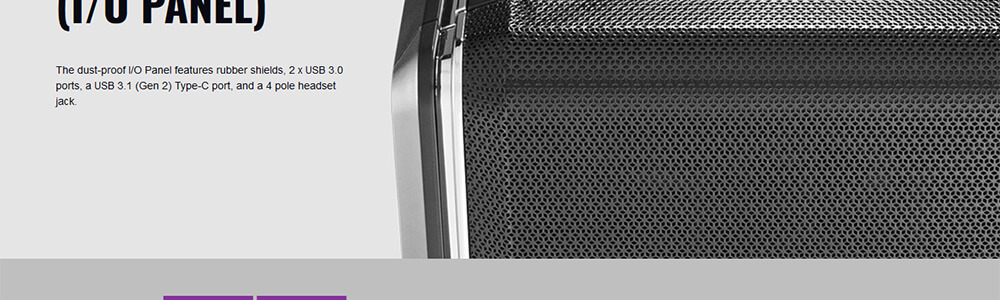

I/O Panel 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Front 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
Pre-installed Fans - Rear 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)

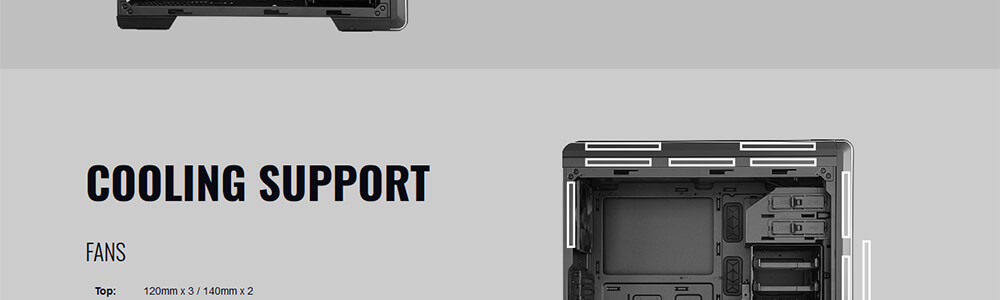

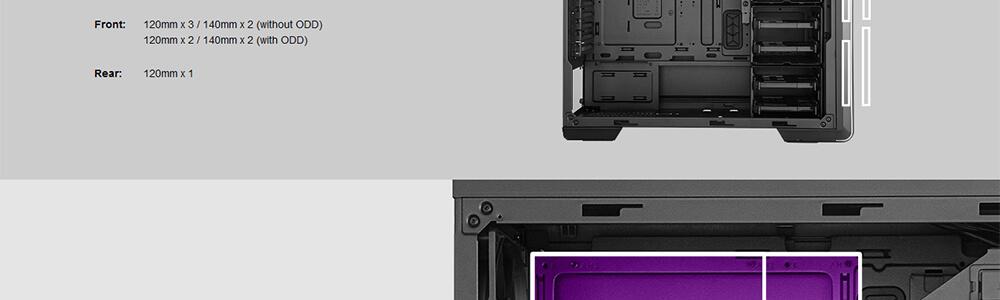

Fan Support - Front 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
Fan Support - Top 3x 120mm, 2x 140mm
Fan Support - Rear 1x 120mm

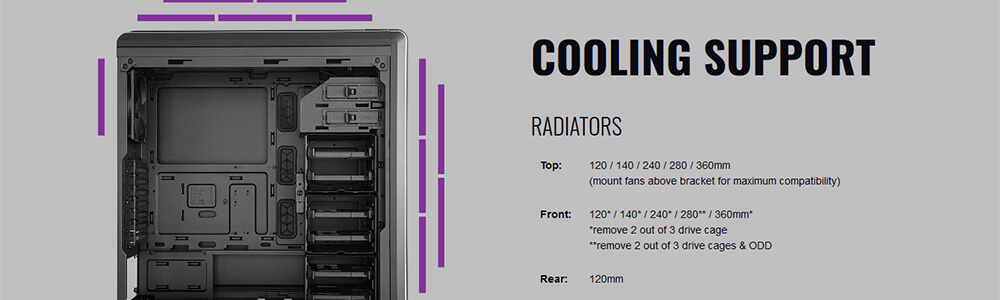

Radiator Support - Front 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)

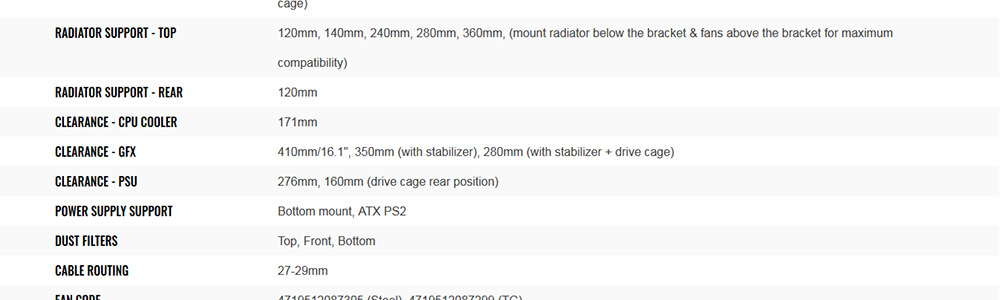

Radiator Support - Top 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
Radiator Support - Rear 120mm
Clearance - CPU Cooler 171mm

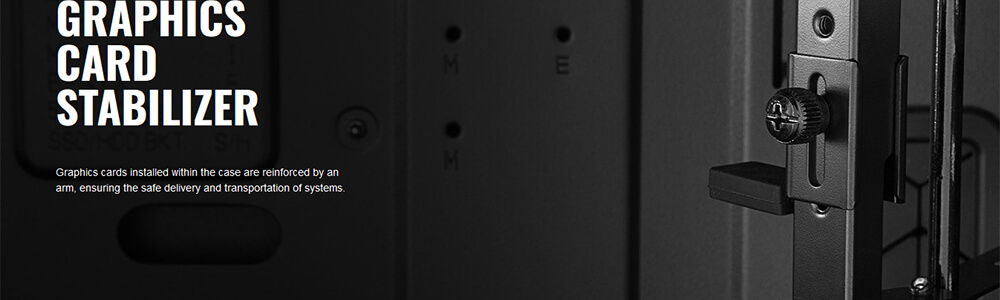

Clearance - GFX 410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
Clearance - PSU 276mm, 160mm (drive cage rear position)
Power Supply Support Bottom mount, ATX PS2
Dust Filters Top, Front, Bottom
Cable Routing 27-29mm
Warranty 2 Years
Note ***Features,Price and Specifications are subject to change without notice.
